TOF MINIS lézeres távolságmérő érzékelő, 5 m hatótáv, TOF technológián alapul, beépített vezérlővel és távolságmérési algoritmussal, RS485 kommunikációt támogat

ÚJ
Raktárkészlet: VAN
TOF MINIS lézeres távolságmérő érzékelő, 5 m hatótáv, TOF technológián alapul, beépített vezérlővel és távolságmérési algoritmussal, RS485 kommunikációt támogat
  • TOF MINIS lézeres távolságmérő érzékelő, 5 m hatótáv, TOF technológián alapul, beépített vezérlővel és távolságmérési algoritmussal, RS485 kommunikációt támogat
  • TOF MINIS lézeres távolságmérő érzékelő, 5 m hatótáv, TOF technológián alapul, beépített vezérlővel és távolságmérési algoritmussal, RS485 kommunikációt támogat
  • TOF MINIS lézeres távolságmérő érzékelő, 5 m hatótáv, TOF technológián alapul, beépített vezérlővel és távolságmérési algoritmussal, RS485 kommunikációt támogat
  • TOF MINIS lézeres távolságmérő érzékelő, 5 m hatótáv, TOF technológián alapul, beépített vezérlővel és távolságmérési algoritmussal, RS485 kommunikációt támogat
8 069 Ft + ÁFA | Bruttó:10 247 Ft
db Kosárba Kosárba
Árváltozás értesítő
TOF MINIS laser range sensor, based on Time-of-Flight (TOF) technology, built-in controller and ranging algorithm, RS485 communication support
Részletek Adatok Csomag tartalma
  • We cannot sell this product or provide any tech support to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.
    TOF MINIS laser range sensor, based on Time-of-Flight (TOF) technology, built-in controller and ranging algorithm, RS485 communication support

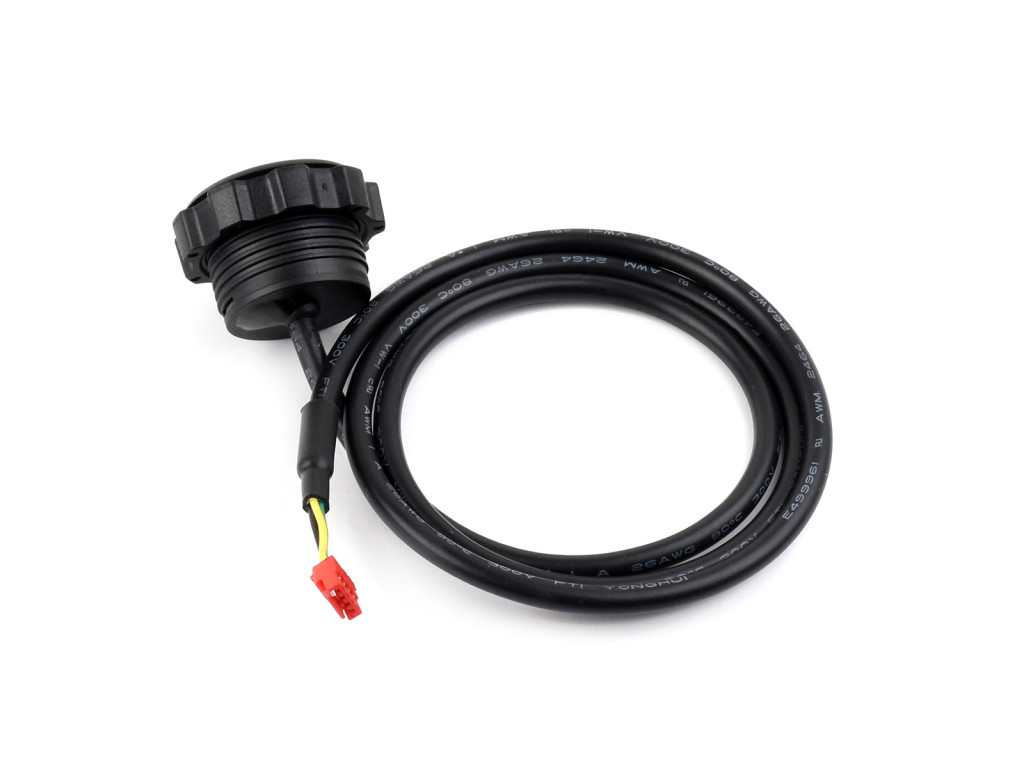

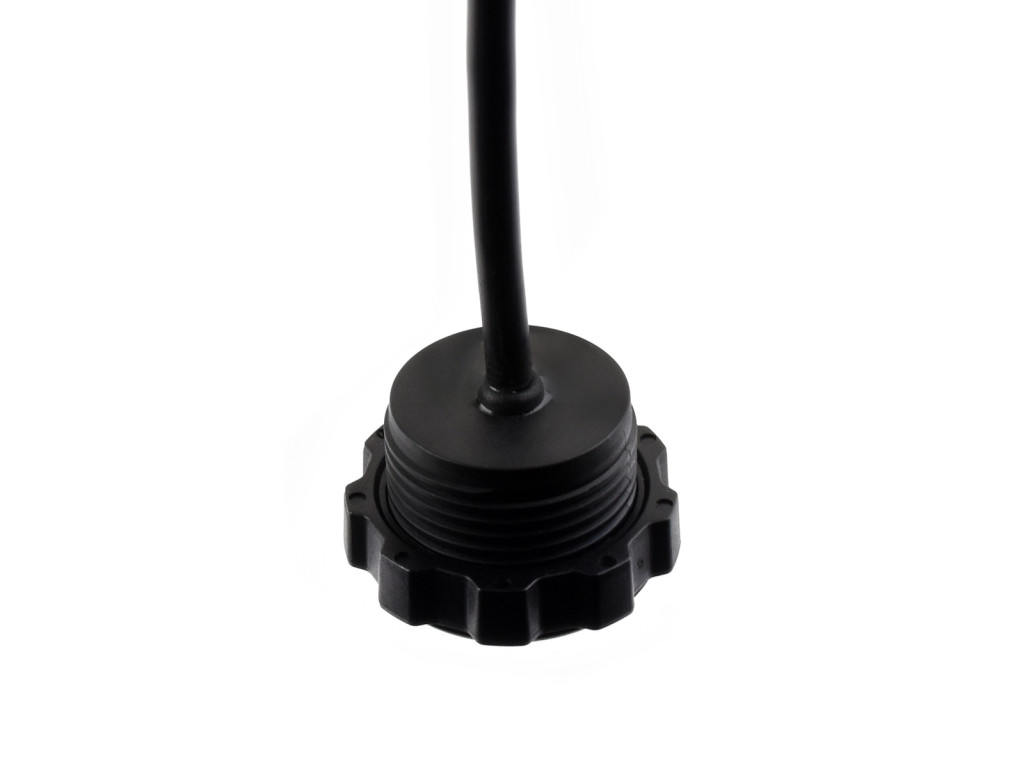

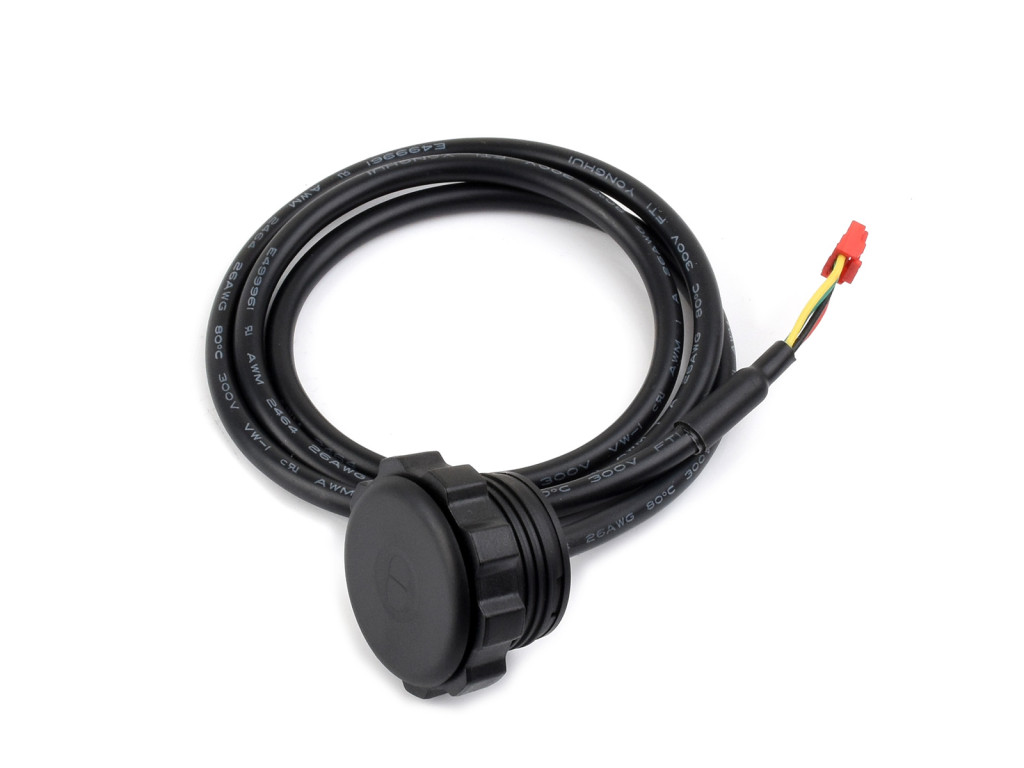

    TOF MINIS Laser Range Sensor

    long range | Short Blind Zone | stable/accurate/sensitive | IP68 | indoor/outdoor

    Provides resources for Raspberry Pi, ESP32, Raspberry Pi Pico, Arduino, etc.

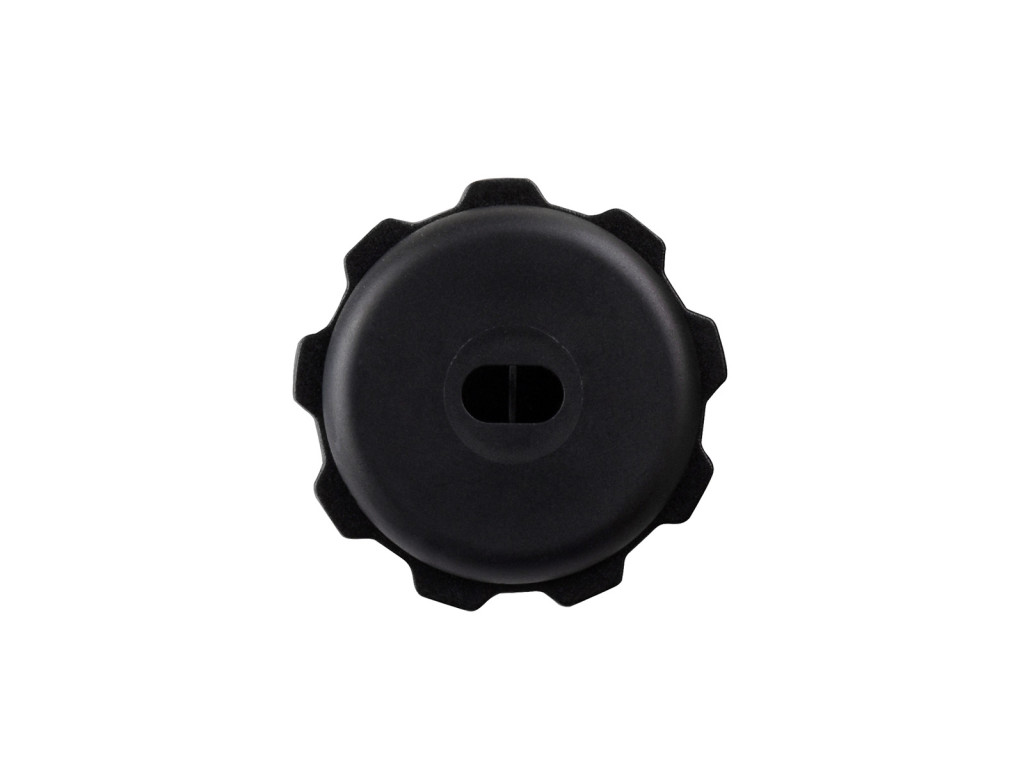

    TOF (time of flight) Laser Range Sensor, front view and features
    Product overview

    TheTOF MINIS Range Sensor is a laser ranging sensor based on Time-of-Flight (TOF) technology. Built-in controller and ranging algorithm, providing a measurement range of up to 5m with an accuracy within ± (1% ~ 3%). Supports RS485 communication, featuring an ultra-narrow FOV and IP68 dust and water protection to effectively reduce background interference and enable longer-range, more stable distance measurement. Suitable for indoor/outdoor environments, with ambient light resistance of up to approximately 100K Lux, enabling applications such as distance measurement, robotic obstacle avoidance, path planning, ceiling detection, and material level measurement.

    Specifications
    ModuleTOF MINIS Range Sensor
    Typical measuring range0.02m ~ 5m
    Field of view (FOV)1.48°
    Refresh rate30Hz (Supports bulk customization for higher frequency, up to 90Hz)
    Ambient light tolerance100K Lux
    Operating temperature-20°C ~ +70°C
    Operating humidity35% ~ 80%RH
    Laser Safety ClassLASER CLASS 1 (IEC 60825-1: 2014)
    Protection RatingIP68
    Wavelength940nm
    Communication interfaceRS485
    Baud rate115200
    Power supply4V ~ 5.6V
    Power consumption100mW ~ 140mW
    Average/Peak Current25mA/26mA
    Weight15.8g
    Case MaterialPC
    Storage temperature-40℃ ~+80℃
    DimensionsDiameter 29.5mm, height 18.00mm

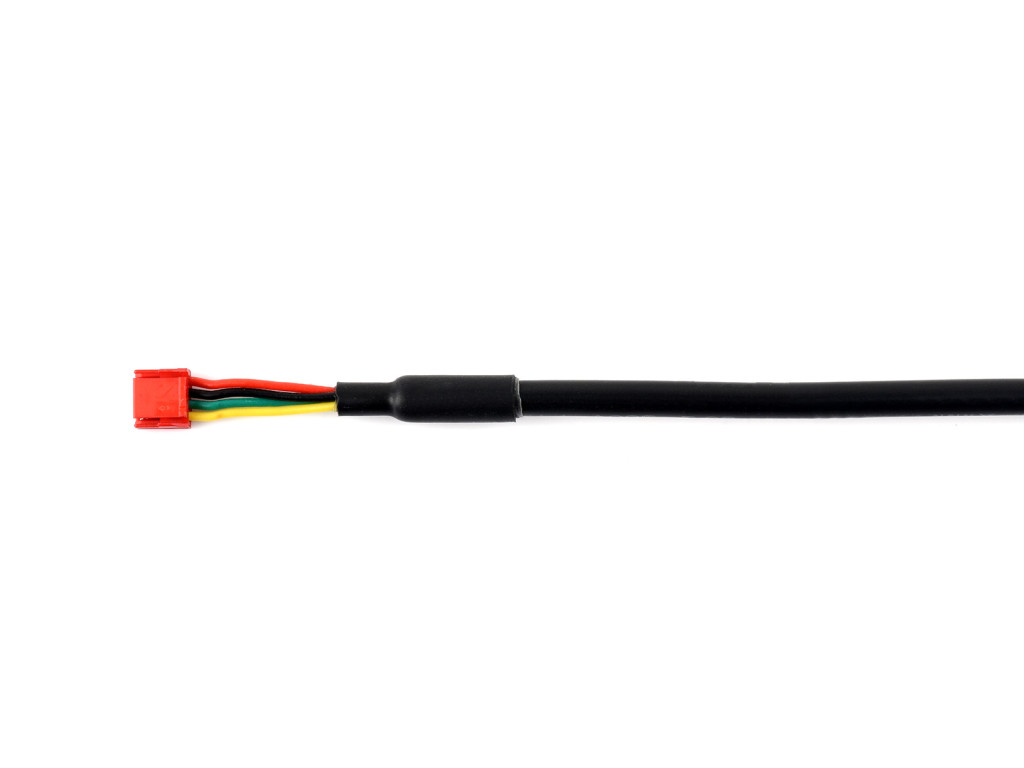

    Cable length60cm
    IP68 Protection Rating

    With a sealed standalone enclosure, effectively enhances device protection, avoids external interference, ensures a stable operating environment, and meets the demands of industrial applications

    TOF (time of flight) Laser Range Sensor, long range low cost ranging module
    applications
    TOF (time of flight) Laser Range Sensor, applications
    TOF (time of flight) Laser Range Sensor, Obstacle Detection applications
    Interface introduction
    TOF (time of flight) Laser Range Sensor, connecting with Raspberry Pi
    Outline Dimensions
    TOF (time of flight) Laser Range Sensor, outline dimensions
    Selection guide
    VersionTOF Laser Range SensorTOF MINIF Range SensorTOF MINIS Range SensorTOF MINI Range Sensor
    ModelStandardBCDMiniStandardBStandardStandard
    Typical measuring rangeShort range: 0.012m ~ 2.16m0.10m ~ 15.0m0.05m ~ 25.0m0.05m ~ 50.0m0.02m ~ 7.8m0.02m ~ 20m0.02m ~ 5m0.02m ~ 4m
    Mid range: 0.012m ~ 3.60m
    Long range: 0.01m ~ 5.00m
    Typical measuring accuracyShort range: accuracy ±1.0cm, standard deviation <0.3cm0.10m ~ 2m ±2cm; 2m ~ 15m ±2%0.05m ~ 25m ±3cm0.05m ~ 50m ±3cm0.02m ~ 7.8m ±4cm<1m@±30mm, >1m@±3%
    Mid range: accuracy ±1.0cm,standard deviation <1.5cm
    Long range: accuracy ±1.5cm,standard deviation <0.5cm@0.01m~3m,standard deviation <8cm@3m~5m
    Resolution1mm5mm
    Power supply4.3V ~ 5.2V3.7V ~ 5.2V(reverse-proof)4.3V ~ 5.2V4V ~ 5.6V
    Operating temperature-10°C ~ 60°C-20℃ ~ 70℃
    Wavelength940nm (Class1 standard compliant)750nm ~ 830nm compliant with IEC 60825-1:2014 version 3 Class2 standard905nm940nm940nm (Class1 standard compliant)
    Field of view (FOV)15° ~ 27° (adjustable)1° ~ 2°2° ~ 3°3° ± 0.5°1.4825° ~ 30°
    Communication interface-RS485 (Modbus RTU Server Mode)-
    UART (3.3V TTL signal level)
    CAN(both of the two ports can be used as CAN simultaneously)-
    -I2C (cascading support, the slave address is 0x08 + module ID)-
    complementary I/O level output-complementary I/O level output-
    BaudrateUART: 115.2 ~ 3000K (921.6Kbps by default)UART: 4.8Kbps ~ 3000Kbps(921.6Kbps by default))UART: 115.2Kbps
    CAN: 100Kbps ~ 3000Kbps(100Kbps by default)I2C: up to 400Kbps-
    Cascade supportUART: supports up to 8x cascades CAN: supports up to 7x cascadesI2C: supports up to 8x cascades-
    Ambient light toleranceweak tolerance, indoor onlyabout 100K LUX tolerance, suits both indoor and outdoor20KLux (weak tolerance, indoor only)
    Power consumption290mW (UART active output, long-range mode, 5.0V power supply, 58mA current)610mW (UART active output, 5.0V power supply, 122mA current)250mW (UART active output, 5.0V power supply, 50mA current)100mW (UART active output, 5.0V power supply, 20mA current)170mW100mW ~ 140mW
    Weight2.7g7.5g1g3.6g15.8g3g
    Dimensions (L × W × H)35.58×12×8.0522.7×28×13.618.8×12×10.335.5×16.2×13.5Diameter: 29.5mm, Height: 18.00mm17.37×13×6.88
  • Brand
    Waveshare
    PartNumber
    TOF MINIS Range Sensor
    Raktárkészlet
    VAN
    Cikkszám
    RPI-WS35108
    Státusz
    ÚJ

  • TOF MINIS Range Sensor x1

    TOF (time of flight) Laser Range Sensor, outline dimensions
:
;
