TTL UART - Ethernet Mini Modul, Kiemelt Lyukak Immersion Gold Dizájnnal, Magasan Integrált Tokozással

Részletek Adatok Csomag tartalma

TTL UART to Ethernet Mini Module, Castellated Holes With Immersion Gold Design, Highly Integrated Packaging

TTL UART to Ethernet Mini Module

Compact size | Easy to integrate | Low power consumption

Faster to be integrated into industrial, IoT, and security applications

Compact and easy integration

Castellated Holes With Immersion Gold Design, Highly Integrated PackagingSupports multiple ways to be embedded into various product applications

* This product is without pre-soldered header by default, please contact the Waveshare service team if you need mass customization.

Multi communication modes

supports TCP server / TCP client / UDP multicast / UDP mode

Modbus gateway support

suitable for Modbus gridding upgrade, Can Be Used With Specific Configuration Software

User-defined heartbeat/registration packet

easy for cloud communication and device identification

NTP protocol support

getting network time info for serial output or data upload

Supports Web and host computer configuration

Interfaces and Indicators

Adapting control pins for easy embedding or connecting to user devices and various MCU master devices. With multiple indicators, easy to monitor the operating status of the module

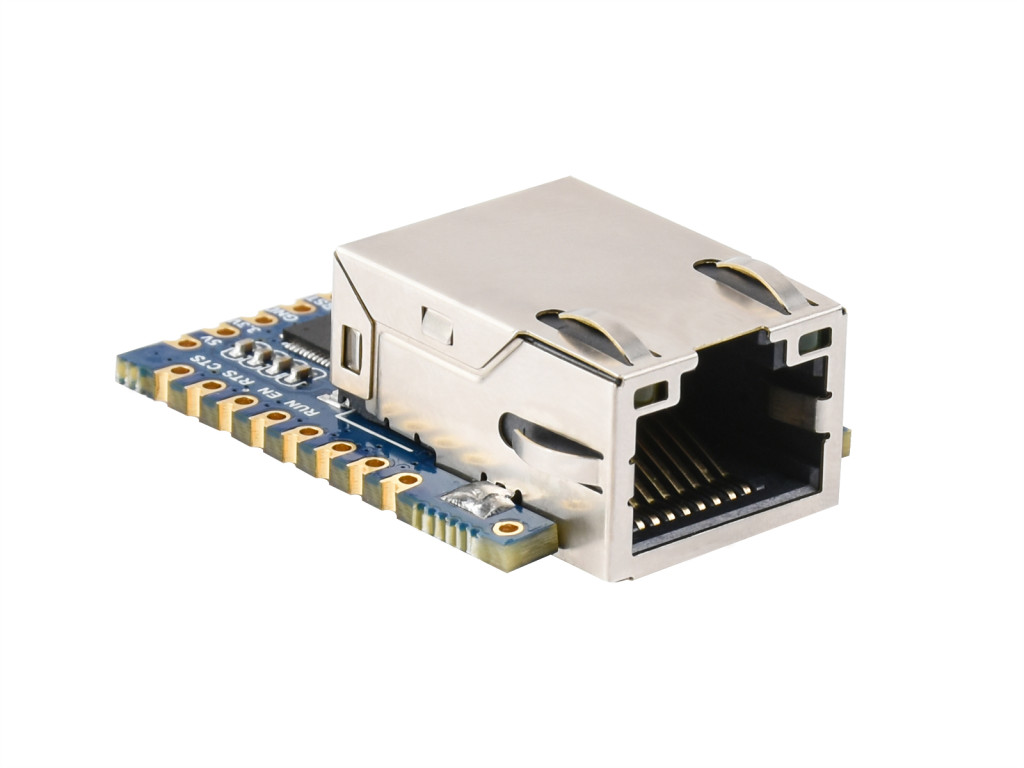

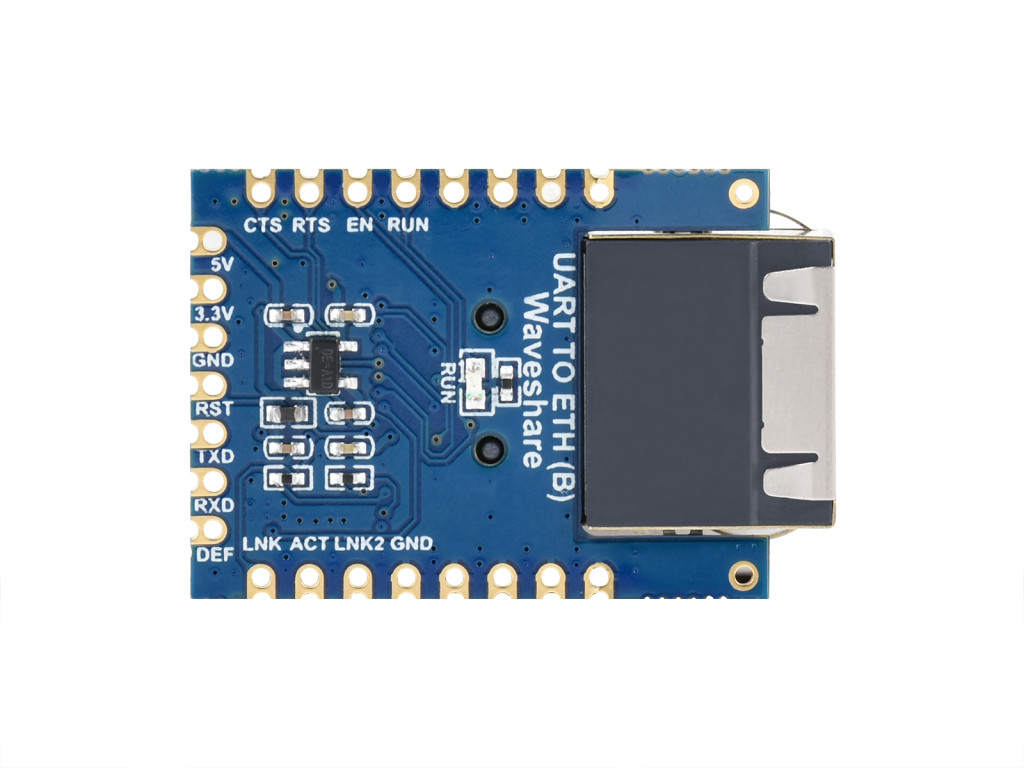

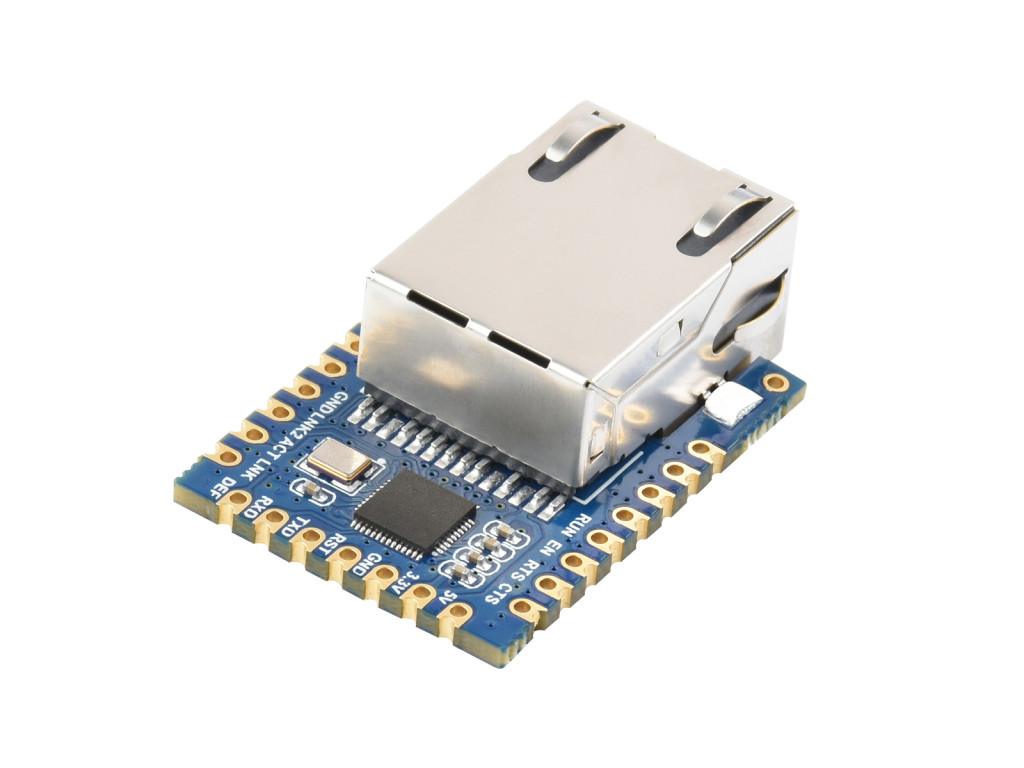

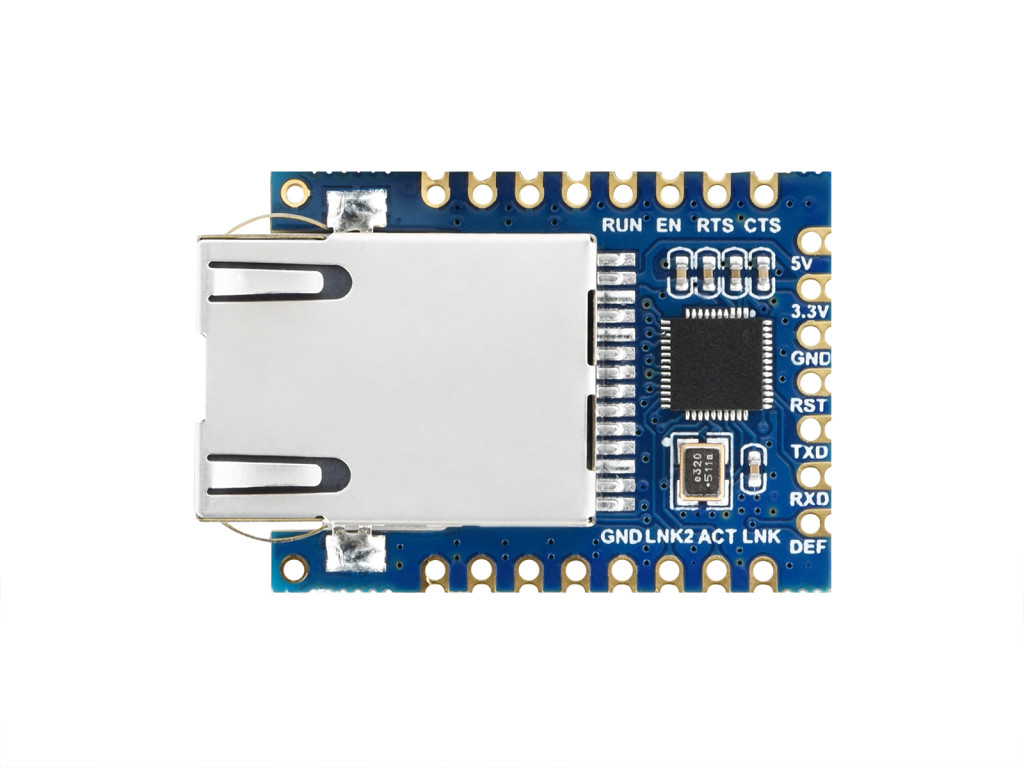

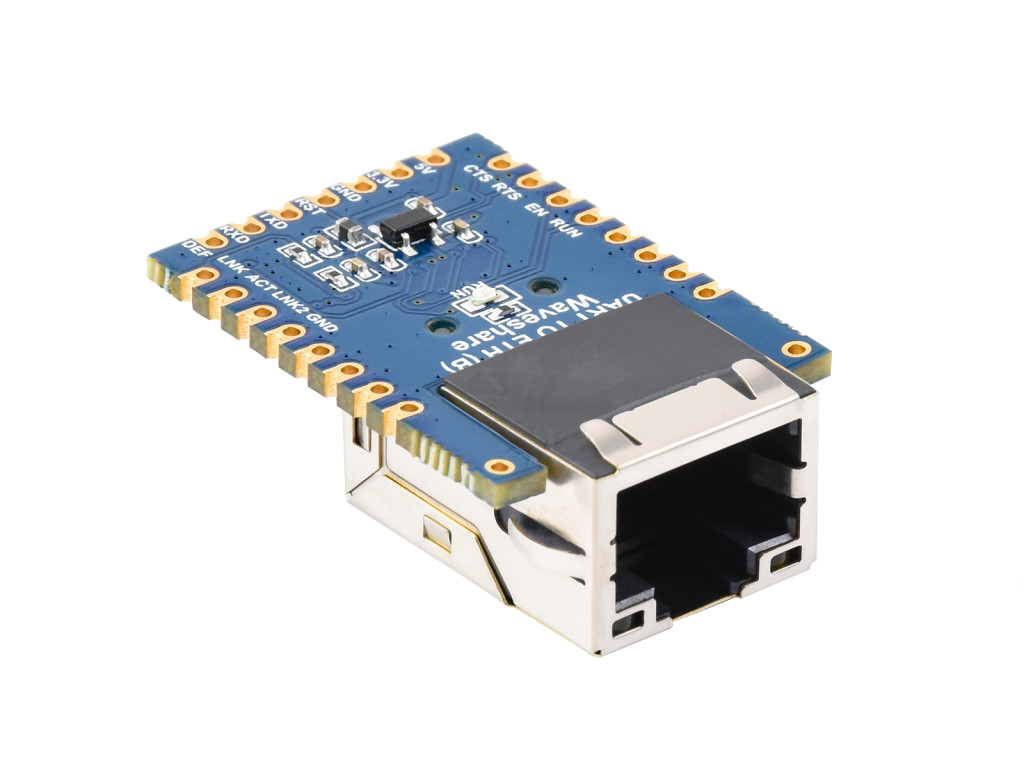

Product Show

Outline dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/UART_TO_ETH_(B)

Selection Guide

Product	UART TO ETH (B)	RS232 TO ETH (B)	RS485 TO ETH (B)	RS232 TO POE ETH (B)	RS485 TO POE ETH (B)	RS232/485/422 TO POE ETH (B)
Product
Product Description	castellated holes module	common version		PoE Network port + isolated RS232	PoE Network port + isolated RS485	PoE Network port + isolated RS232/485/422
Enclosure	-	Rail-mount plastic case				Aluminium Alloy case (supports wall-mount and rail-mount installations)
Basic Function	Bi-directional transparent data transmission between serial port and Ethernet
Ethernet	common network port			PoE network port, support IEEE 802.3af standard
Isolation Protection	N/C			Power isolation, Signal isolation
Serial Port	TTL	RS232	RS485	Isolated RS232	Isolated RS485	Isolated RS232/485/422
Power Supply	pinheader / pads	screw terminal		screw terminal, or PoE port		DC power port, screw terminal, or PoE port
Dimensions	34×23×11.5mm	87×36×59mm				88.7×72.5×24.2mm
Application Scenarios	Can be used as Serial server, Modbus gateway, MQTT gateway, suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring...
Serial Specification
Baudrate	300 ~ 115200 bps
Parity Bit	none, odd, even, mark, space
Data Bit	5 ~ 9 bits
Flow Control	support	N/A
Software
Protocol	ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
Configuration	host, web browser, device management functions library
Communication Method	TCP/IP direct communication, VCOM
Operating Mode	TCP server, TCP client, UDP Group, UDP
Modbus Gateway	Modbus TCP to RTU
Other Functions	User-defined heartbeat/registration packet, User-defined web page...
Other
Operating Temperature	-40℃ ~ 85℃
Humidity Range	5% ~ 95% relative humidity
