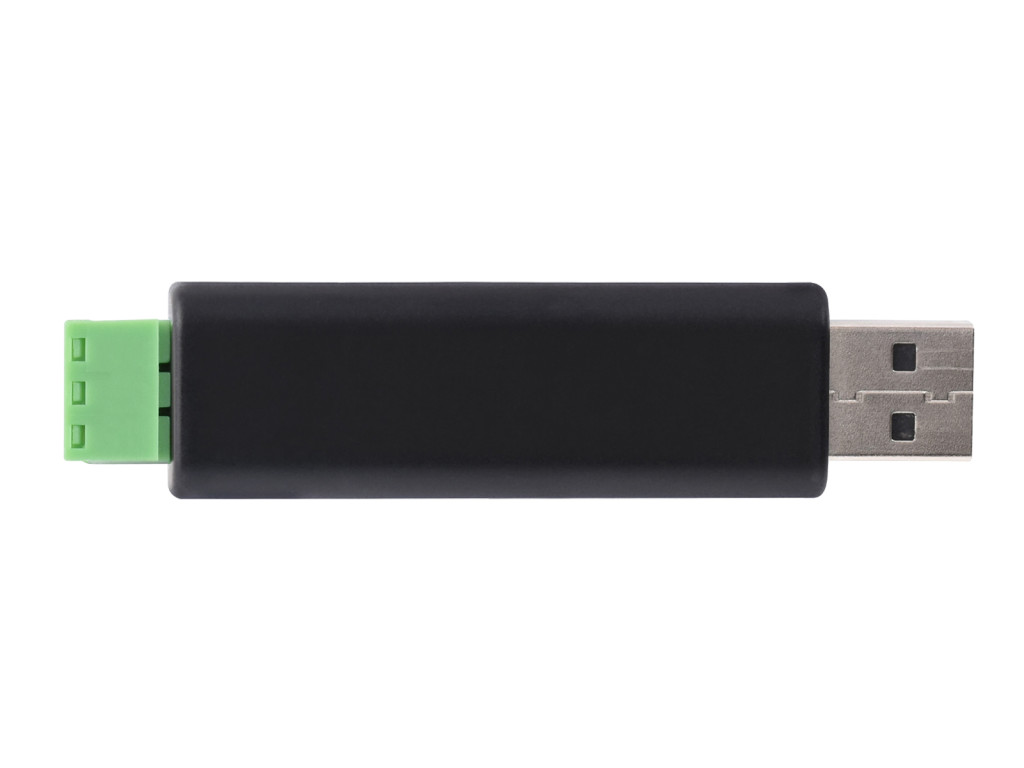

USB-CAN adapter A modell, STM32 chip megoldás, több üzemmód, több rendszerrel kompatibilis

Raktárkészlet: VAN
USB-CAN adapter A modell, STM32 chip megoldás, több üzemmód, több rendszerrel kompatibilis
  • USB-CAN adapter A modell, STM32 chip megoldás, több üzemmód, több rendszerrel kompatibilis
  • USB-CAN adapter A modell, STM32 chip megoldás, több üzemmód, több rendszerrel kompatibilis
  • USB-CAN adapter A modell, STM32 chip megoldás, több üzemmód, több rendszerrel kompatibilis
  • USB-CAN adapter A modell, STM32 chip megoldás, több üzemmód, több rendszerrel kompatibilis
  • USB-CAN adapter A modell, STM32 chip megoldás, több üzemmód, több rendszerrel kompatibilis
  • USB-CAN adapter A modell, STM32 chip megoldás, több üzemmód, több rendszerrel kompatibilis
9 783 Ft + 27% ÁFA | Bruttó:12 425 Ft
Státusz
:
Raktárról azonnal szállítjuk!
db Kosárba Kosárba
Értesítést kérek árcsökkenés esetén
USB-CAN adapter A modell, STM32 chip megoldás, több üzemmód, több rendszerrel kompatibilis
Részletek Adatok Csomag tartalma
  • USB to CAN Adapter Model A, STM32 Chip Solution, Multiple Working modes, Multi-system Compatible
    USB to CAN Adapter Model A

    STM32 Chip Solution, Multi-system Compatible, Multiple Working modes

    Features at a glance
    • Supports CAN2.0A (standard frame) and CAN2.0B (extended frame)
    • CAN baud rate is configurable in the range of 5Kbps-1Mbps
    • Supports 4 working modes: normal mode, loopback mode, silent mode, silent loopback mode
    • Supports multiple CAN data sending modes: single frame, multiple frames, manually, regularly and cyclic sending
    • Supports multiple CAN data receiving modes: can be configured to only receive data from a certain ID, or specify ID to automatically answer the configured data
    • Data can be saved as TXT or Excel
    • Supports CAN bus detection for status checking
    • Sending/receiving CAN data with time scale, allows sequentially displaying
    • Baud rate of USB virtual COM port is configurable in the range of 9600 ~ 2000000bps (2000000bps by default)
    • Supports setting working parameters by configuration software or serial command, can be saved after power off
    • Adopts STM32 chip solution, stable and reliable communication
    • Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit
    • Comes with master computer software for Windows system, easy to use
    • Easy secondary development, just need to modify the sending and receiving commands
    Version Upgrade
    Primary Functions

    Collects data from CAN bus to PC via USB for transceiver control, data analysis, acquisition and monitoring of CAN bus network

    CAN Baud Rate Configurable

    CAN Baud Rate Is Configurable In The Range Of 5Kbps-1Mbps

    Support Windows And Linux System

    Support Windows XP/7/8/10/11 and Linux systems such as Raspberry Pi OS and Ubuntu under Jetson Nano, support secondary development

    Support Multiple Working modes
    Adopts STM32 Chip Solution

    Adopts the original STM32F103 chip, stable and reliable communication

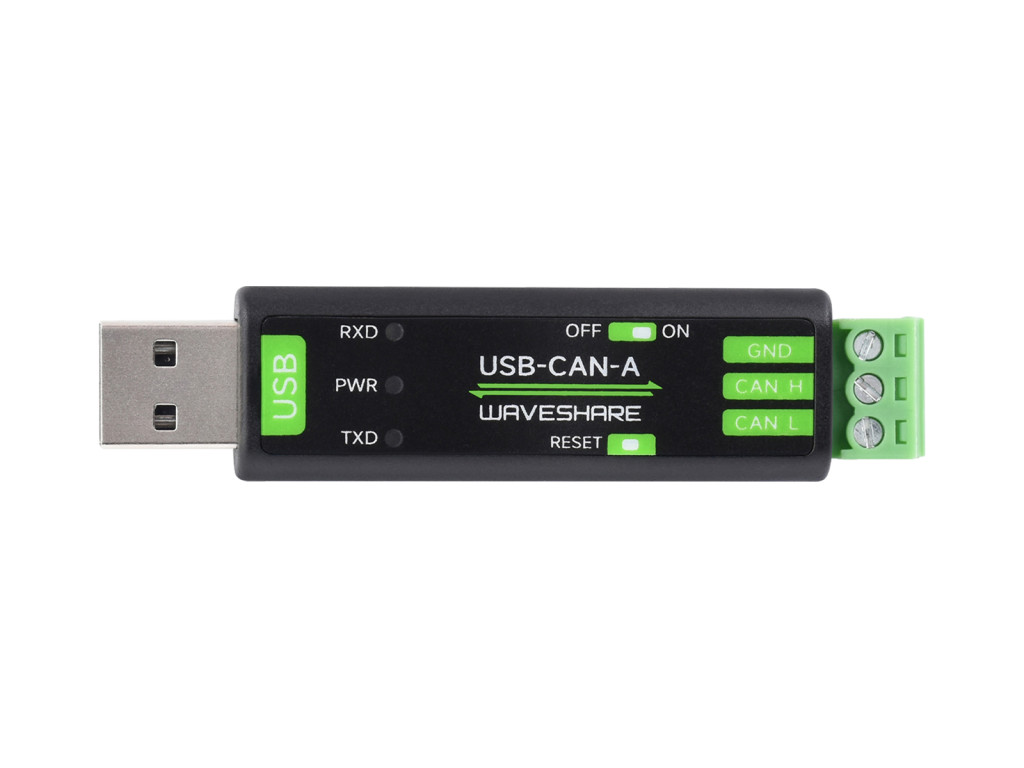

    Interfaces Introduction

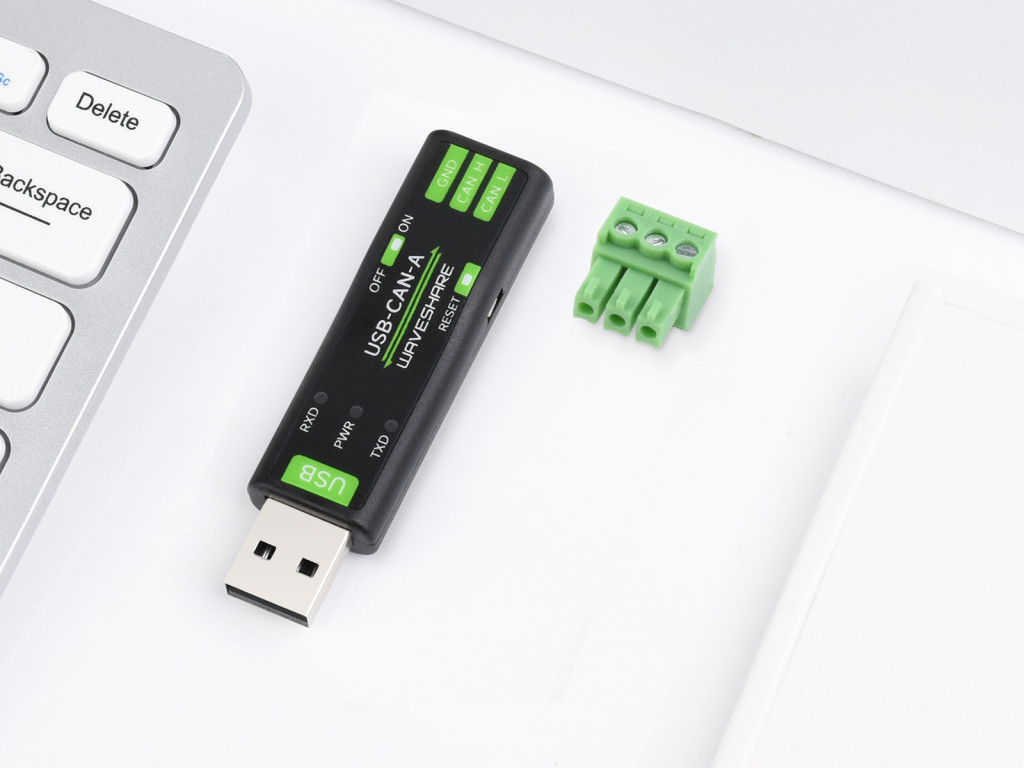

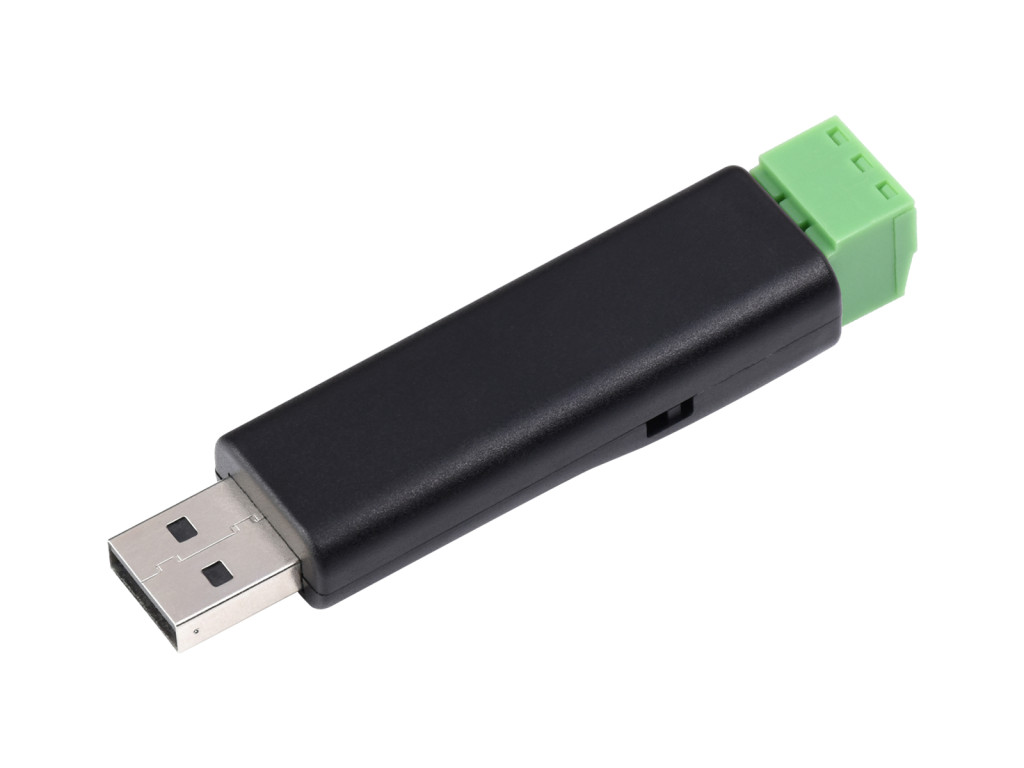

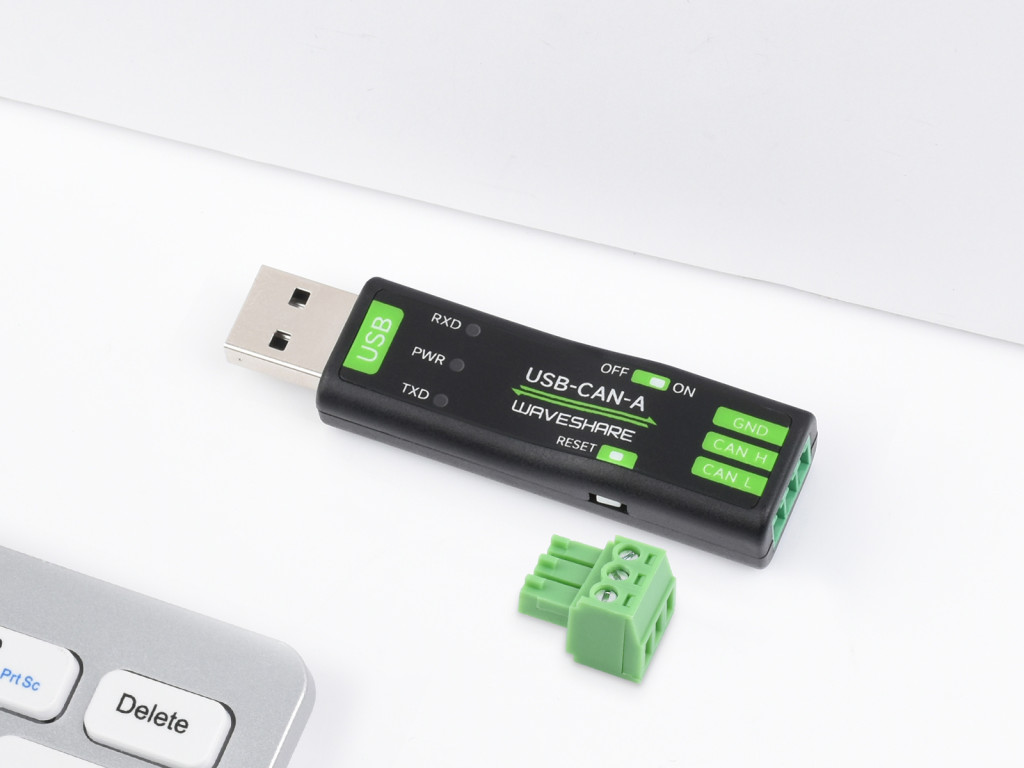

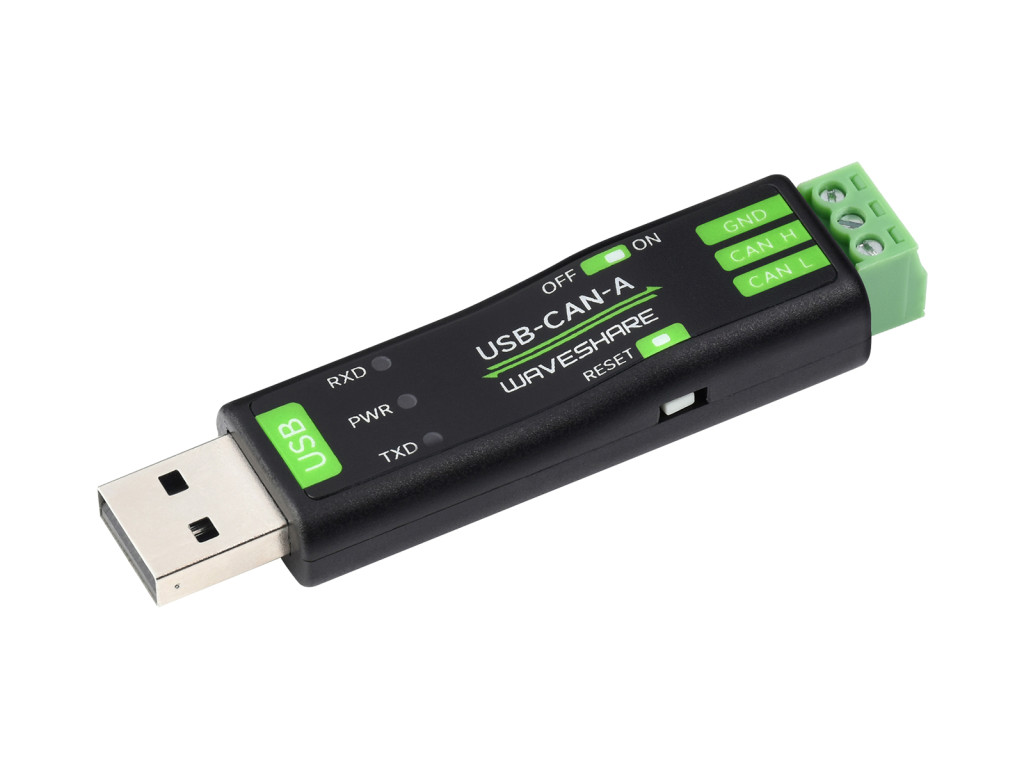

    Product Show
    Outline dimensions
    Resources & Services
    WIKI:www.waveshare.com/wiki/USB-CAN-A

    * Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

  • Raktárkészlet
    VAN
    Cikkszám
    RPI-WS23635
    1. USB-CAN-A x1
    2. USB Cable ~1.5m x1
    3. Screwdriver x1
