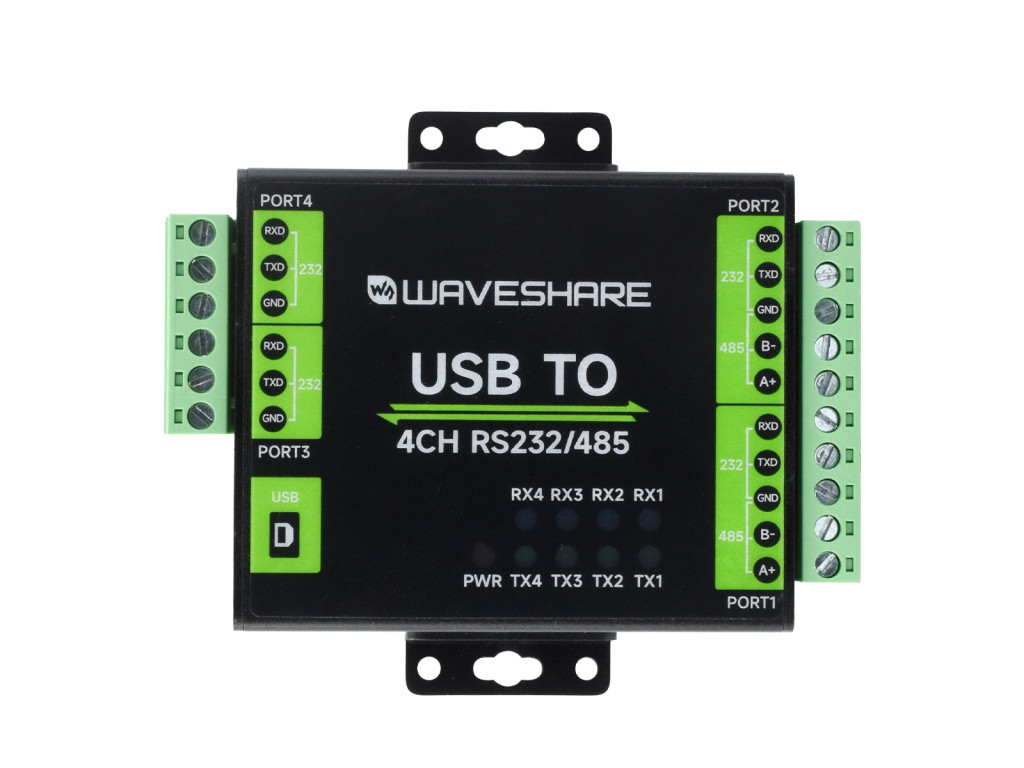

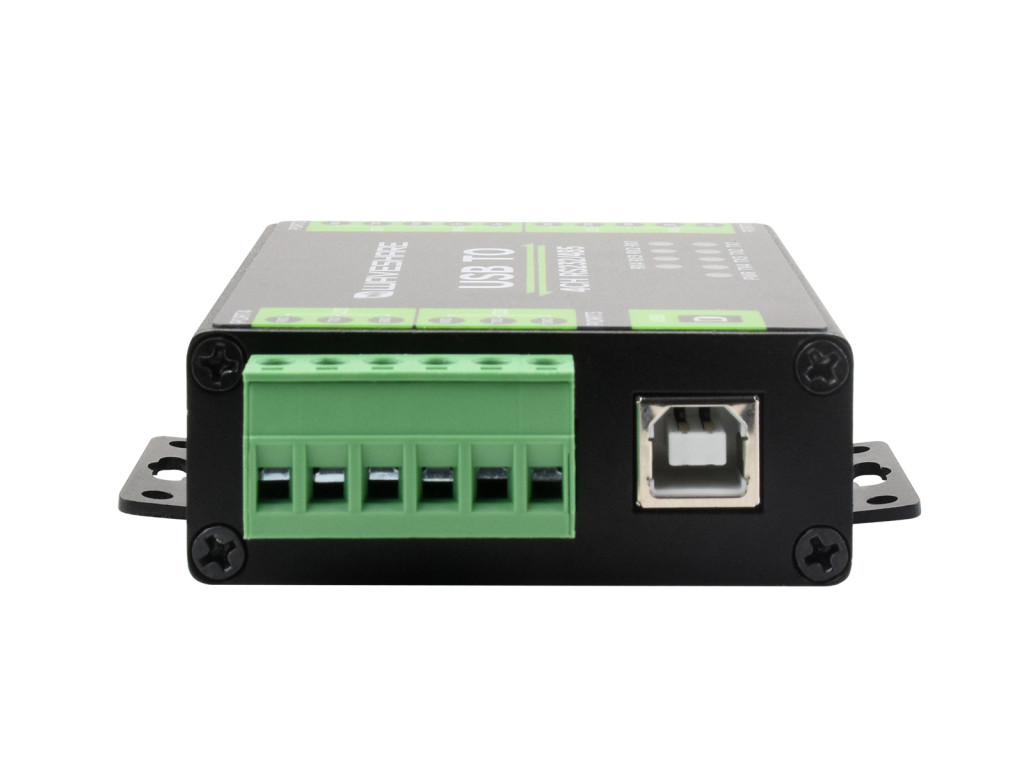

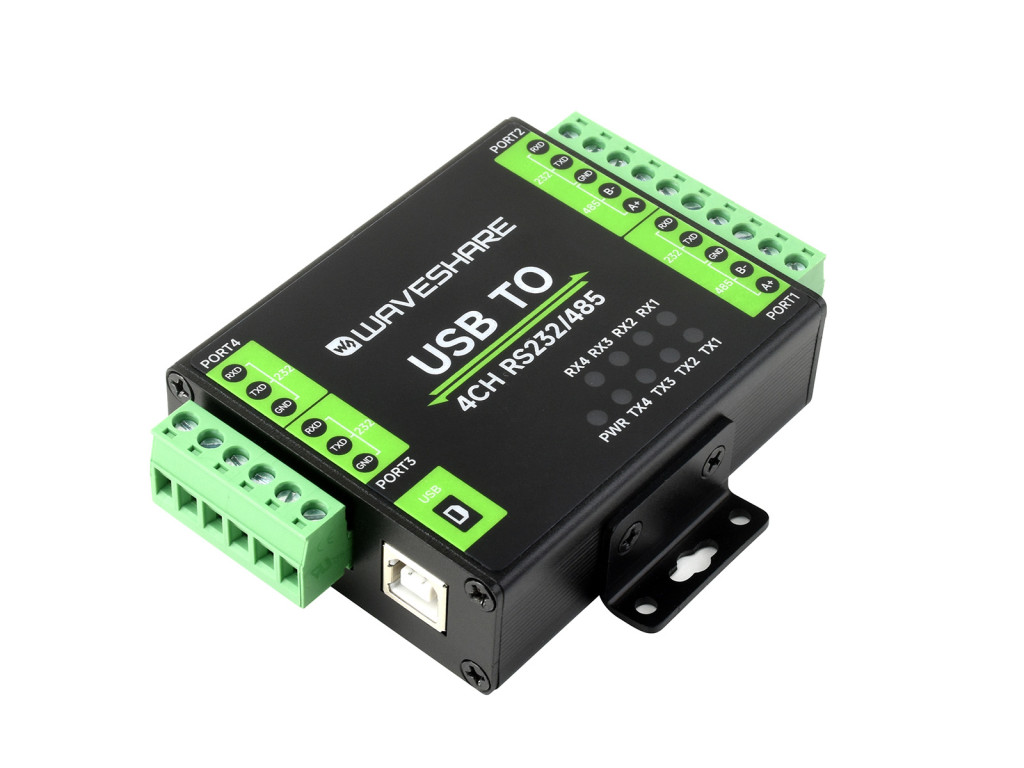

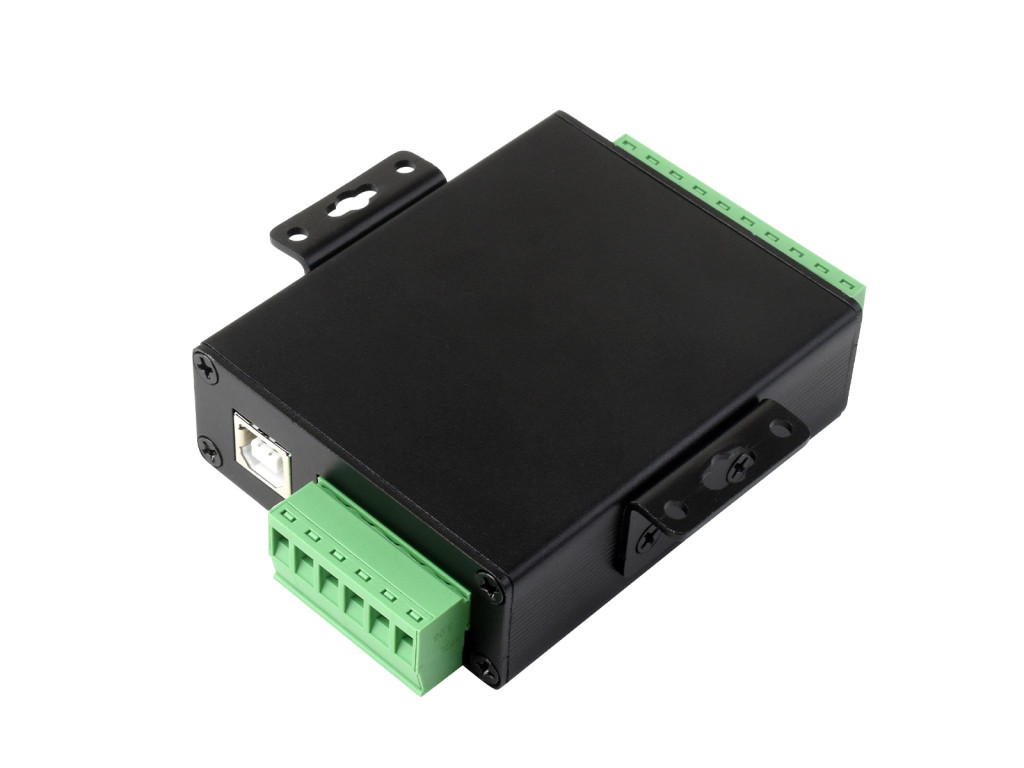

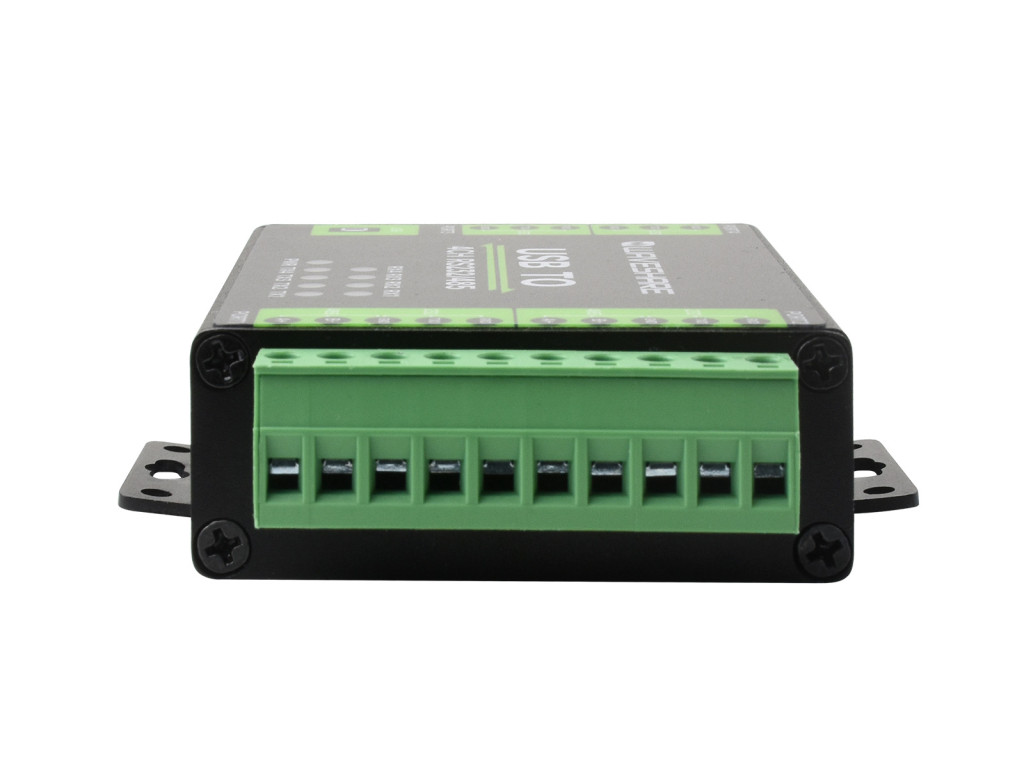

Ipari, izolált USB - RS232/485 átalakító, eredeti FT4232HL chip, támogatja az USB - 2 csatornás RS232 + 2 csatornás RS232/485 konvertert

Raktárkészlet: VAN
Ipari, izolált USB - RS232/485 átalakító, eredeti FT4232HL chip, támogatja az USB - 2 csatornás RS232 + 2 csatornás RS232/485 konvertert
  • Ipari, izolált USB - RS232/485 átalakító, eredeti FT4232HL chip, támogatja az USB - 2 csatornás RS232 + 2 csatornás RS232/485 konvertert
  • Ipari, izolált USB - RS232/485 átalakító, eredeti FT4232HL chip, támogatja az USB - 2 csatornás RS232 + 2 csatornás RS232/485 konvertert
  • Ipari, izolált USB - RS232/485 átalakító, eredeti FT4232HL chip, támogatja az USB - 2 csatornás RS232 + 2 csatornás RS232/485 konvertert
  • Ipari, izolált USB - RS232/485 átalakító, eredeti FT4232HL chip, támogatja az USB - 2 csatornás RS232 + 2 csatornás RS232/485 konvertert
15 842 Ft + ÁFA | Bruttó:20 119 Ft
db Kosárba Kosárba
Olcsóbban szeretném
Ipari, izolált USB - RS485/422 átalakító, eredeti FT4232HL chip, támogatja az USB - 2 csatornás RS485 + 2 csatornás RS485/422 konvertert, fali és sínre szerelhető
Részletek Adatok Csomag tartalma
  • Industrial Isolated USB To RS232/485 Converter, Original FT4232HL Chip, Supports USB To 2-Ch RS232 + 2-Ch RS232/485, Wall-Mount & Rail-Mount Support
    Industrial USB to 4-ch RS232/485 Converter

    USB To 4-ch RS232orUSB To 2-ch RS232 + 2-ch RS485

    FT4232HL | Stable transmission | Multiple devices applicable | Multi-OS compatible

    Features At A Glance
    • Adopts original FT4232HL chip, fast communicating, stable and reliable, better compatibility
    • Supports USB to 2-ch isolated RS232/485 + 2-ch isolated RS232
    • Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
    • Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
    • Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection
    • Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance
    • Onboard 120R terminal resistor on the RS485 interface, enabled/disabled via jumper
    • 9 LEDs for indicating the power and transceiver status
    • Industrial grade metal case, supports wall-mount and rail-mount installation, solid and beautiful, easy to install
    Specifications
    PRODUCT TYPEIndustrial USB to RS232/485 digital isolated converter
    Host portUSB
    Device portRS232/485
    USBOperating voltage5V
    ConnectorUSB-B
    Protection200mA self-recovery fuse, isolated output
    isolated RS232ConnectorScrew terminal
    ProtectionTVS diode, surge protection & ESD protection, power isolation and signal isolation
    Transmission modePoint-to-point
    Baud rate300bps ~ 921600bps
    isolated RS485ConnectorScrew terminal
    Direction controlHardware automatic control
    ProtectionTVS diode, surge protection & ESD protection, power isolation and signal isolation
    ResistorOnboard reserved 120R matching resistor, NC by default, enabled via jumper
    Transmission modePoint-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
    Baud rate300bps ~ 921600bps
    IndicatorsPWRRed power indicator, light up when there is USB connection and voltage is detected
    TX1~TX4Green TX indicator, light up when the USB port sends data
    RX1~RX4Blue RX indicator, light up when the device ports send data back
    operating environmentTemperature range-40 ~ 85℃
    Humidity range5%RH~95%RH
    Operating systemMac, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7
    Basic function

    Supports USB to 4-ch multi-functional serial port, convenient for expanding or debugging various industrial serial port devices; Supports USB to 2-ch isolated RS232/485 + 2-ch isolated RS232

    Original Industrial Grade Chip

    Onboard original FT4232HL chip, Fast communication, stable & reliable, better compatibility

    Safer Isolated Design
    • Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
    • Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
    Multiple Protection, Safe And Stable

    Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection. Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance.

    Multi system Support

    Supports Mac, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7, etc.

    Aluminium Alloy Enclosure

    Aluminium alloy enclosure with sand blasting and anodic oxidation,Solid and durable; Wall-Mount & Rail-Mount Support, More flexible for industrial installation

    Pin definition
    Outline dimensions
    Resources & Services
    WIKI:www.waveshare.com/wiki/USB_TO_4CH_RS232/485

    * Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

    USB to serial port Converter Selection
    ModelDescriptionserial port converter
    USB TO RS232/485/TTLUSB to single-channel serial port;Adopts FT232RL solution;Industrial grade, with isolation; Wall-mount and desktop supportSingle serial port converter:
    • USB to RS232
    • USB to RS485
    • USB to TTL
    USB TO RS232/485/TTL (B)USB to single-channel serial port;Adopts CH343G solution;Industrial grade, with isolation;Wall-mount and desktop supportSingle serial port converter:
    • USB to RS232
    • USB to RS485
    • USB to TTL
    USB TO RS232/485/422/TTLUSB to single-channel serial port;Adopts FT232RNL solution;Industrial grade, with isolation;Wall-mount and rail-mount supportSingle serial port converter:
    • USB to RS232
    • USB to RS485
    • USB to RS422
    • USB to TTL
    USB TO UART/I2C/SPI/JTAGUSB to 2-ch serial port;Adopts CH347T solution;Industrial grade, without isolation;Wall-mount and desktop supportMulti-functional serial port converter:
    • USB to 2-ch TTL
    • USB to 1-ch TTL + 1-ch I2C + 1-ch SPI
    • USB to 1-ch TTL + 1-ch JTAG
    USB TO 4CH TTLUSB to 4-ch serial port;Adopts CH344 solution;Industrial grade, without isolation;Wall-mount and desktop support4-ch serial port converter:
    • USB to 4-ch TTL
    USB TO 4CH RS485USB to 4-ch serial port;Adopts CH344 solution;Industrial grade, without isolation;Wall-mount and desktop support4-ch serial port converter:
    • USB to 4-ch RS485
    USB TO 4CH RS485 (B)USB to 4-ch serial port;Adopts CH344 solution;Industrial grade, with isolation;Wall-mount and desktop support4-ch serial port converter:
    • USB to 4-ch RS485
    USB TO 4CH RS232/485USB to 4-ch serial port;Adopts FT4232HL solution;Industrial grade, with isolation;Wall-mount and rail-mount support4-ch serial port converter:
    • USB to 4-ch RS232
    • USB to 3-ch RS232 + 1-ch RS485
    • USB to 2-ch RS232 + 2-ch RS485
    USB TO 4CH RS232USB to 4-ch serial port;Adopts FT4232HL solution;Industrial grade, with isolation;Wall-mount and desktop support4-ch serial port converter:
    • USB to 4-ch RS232
    USB TO 4CH RS485/422USB to 4-ch serial port;Adopts FT4232HL solution;Industrial grade, with isolation;Wall-mount and rail-mount support4-ch serial port converter:
    • USB to 4-ch RS485
    • USB to 3-ch RS485 + 1-ch RS422
    • USB to 2-ch RS485 + 2-ch RS422
    USB TO 4CH Serial ConverterUSB to 4-ch serial port;Adopts FT4232HL solution;Industrial grade, with isolation;Wall-mount and desktop support4-ch serial port converter:
    • USB to 1-ch TTL + 3-ch RS485
    • USB to 1-ch TTL + 2-ch RS485 + 1-ch RS232
    • USB to 1-ch TTL + 2-ch RS485 + 1-ch RS422
    • USB to 1-ch TTL + 2-ch RS485 + 1-ch RS232 + 1-ch RS422
    • USB to 2-ch TTL + 2-ch RS485
    • USB to 2-ch TTL + 1-ch RS485 + 1-ch RS422
    • USB to 2-ch TTL + 1-ch RS422 + 1-ch RS232
    USB TO 8CH RS485USB to 8-ch serial port;Industrial grade, with isolation;Wall-mount and rail-mount support8-ch serial port converter:
    • USB to 8-ch RS485
  • Brand
    Waveshare
    PartNumber
    USB TO 4CH RS232/485
    Raktárkészlet
    VAN
    Cikkszám
    RPI-WS26681
    1. USB TO 4CH RS232/485 x1
    2. Rail-mount buckle x1
    3. USB Cable ~1.2m x1
    4. Screwdriver x1
:
;
