Ipari USB - 8 csatornás TTL átalakító, USB - UART, Többszörös védelmi áramkörök, Több rendszer támogatása, USB - TTL adapter
Ipari USB - 4 csatornás TTL átalakító, USB - UART, több védelmi áramkör, több rendszer támogatása
-

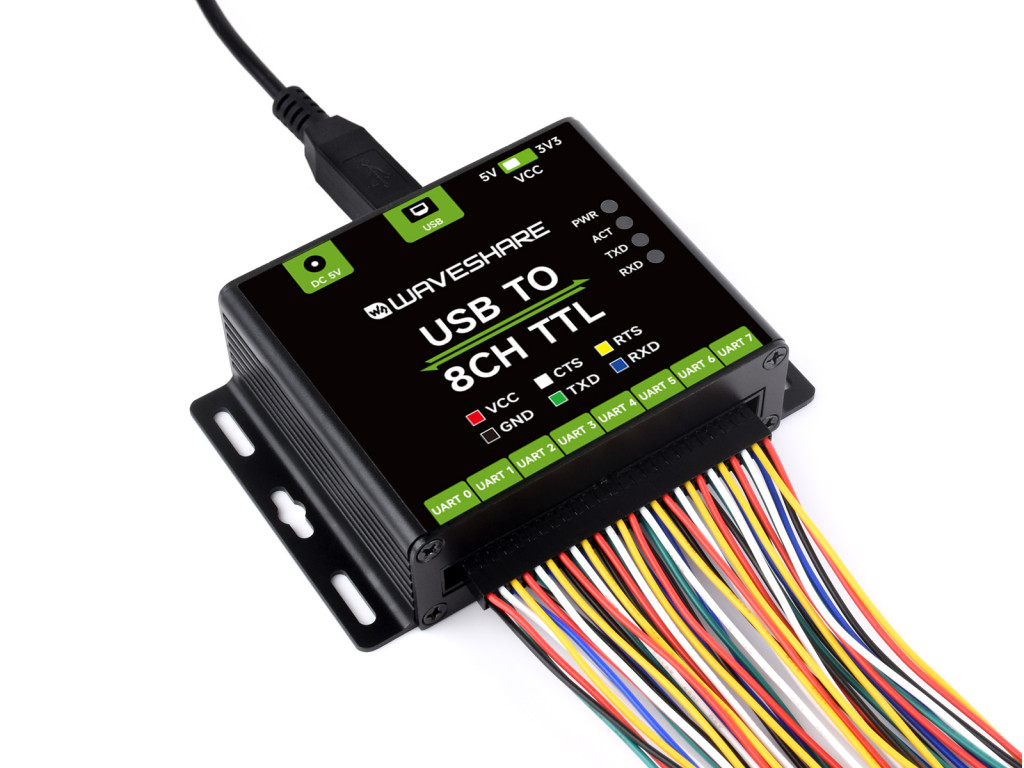

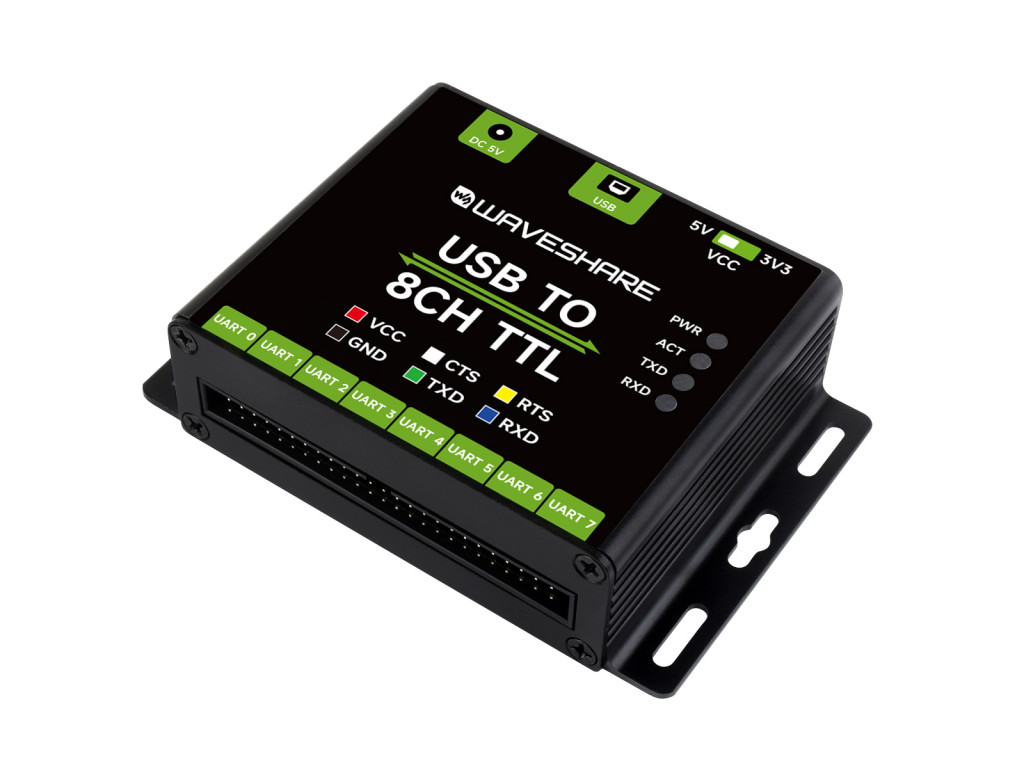

Industrial USB TO 8CH TTL Converter, USB to UART, Multi Protection Circuits, Multi Systems Support, USB To TTL AdapterIndustrialUSB TO 8CH TTL UARTCONVERTER
Stable Transmission | Multi Devices | Multi Systems
Features At A Glance- Extending USB to 8CH TTL (UART) with hardware flow control, allows concurrent and independent communication for each channel
- Onboard self-recovery fuse and protection diodes, ensure the current/voltage stable outputs, provide over-current/over-voltage proof, improve shock proof performance
- Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection
- Onboard voltage translator circuit, with surge suppress and ESD protection, safe and stable communication
- Onboard TTL serial port 3.3V and 5V voltage level switch, allows selecting TTL level
- Aluminium alloy enclosure with oxidation dull-polish surface, CNC process opening, solid and durable, well-crafted
- 4 LEDs for indicating the power and transceiver status
SpecificationsPRODUCT TYPE Industrial USB to TTL converter Host port USB Device Port TTL (UART) Baudrate 1200bps ~ 2M USB Operating voltage 5V Connector USB-B Protection 200mA self-recovery fuse, ESD protection Power supply Connector 5V DC power jack Protection Over-voltage protection and anti-reverse protection TTL (UART) Connector 50PIN anti-reverse header Protection TVS diode, surge protection & ESD protection TTL level 3.3V/5V (configurable) Indicators PWR Power indicator, lights up red when there is USB connection and voltage is detected ACT Status indicator, lights up green when the driver is detected TXD TX indicator, lights up when the USB port sends data RXD RX indicator, lights up when the device ports send data back Operating environment Temperature -40℃ ~ 85℃ Humidity 5%RH ~ 95%RH Operating system Mac, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7 Multiple protection, safe and stable- Onboard self-recovery fuse and protection diodes, provide over-current/over-voltage proof, improve shock proof performance
- Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection
- Onboard voltage translator circuit, with surge suppress and ESD protection, safe and stable communication
Multiple systems supportCompatible with popular systems like Win7/8/8.1/10/11, Mac, Linux, Android...
Application examplessuitable for industrial/office conditions with strict requirements for operating environment and devices

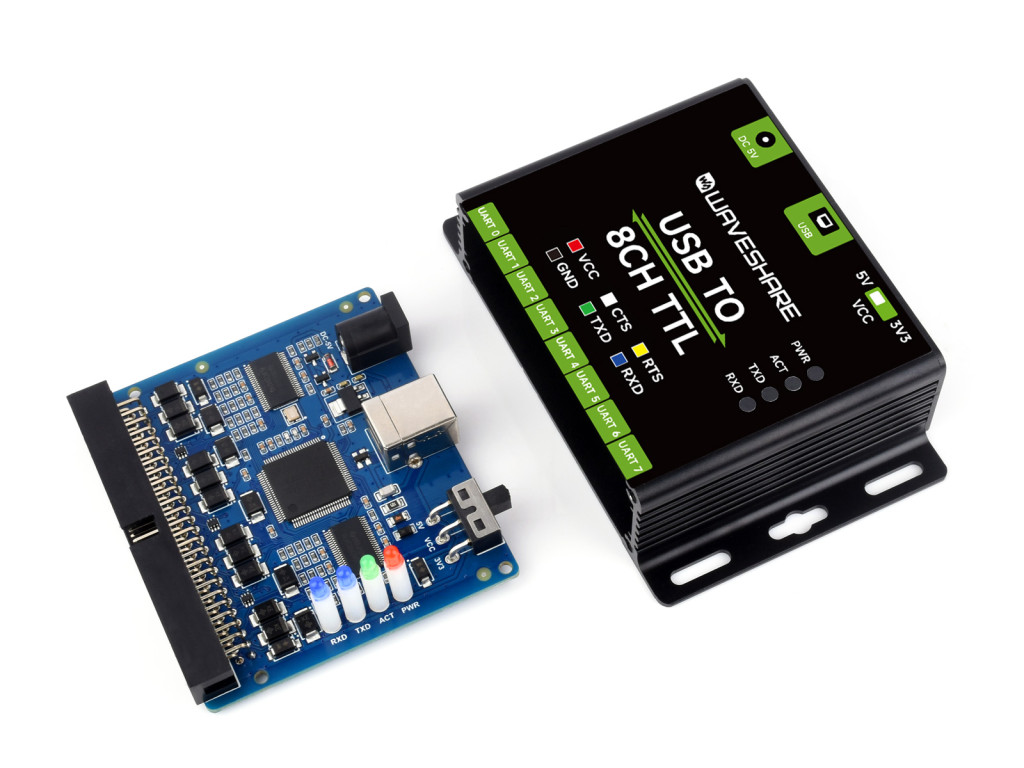

Extending USB to 8CH TTL UART Industrial chip, 8CH TTL, allows concurrent and independent communication
Small size, easy installation Flexible installation, suitable for sorts of devices to extend TTL interfaces

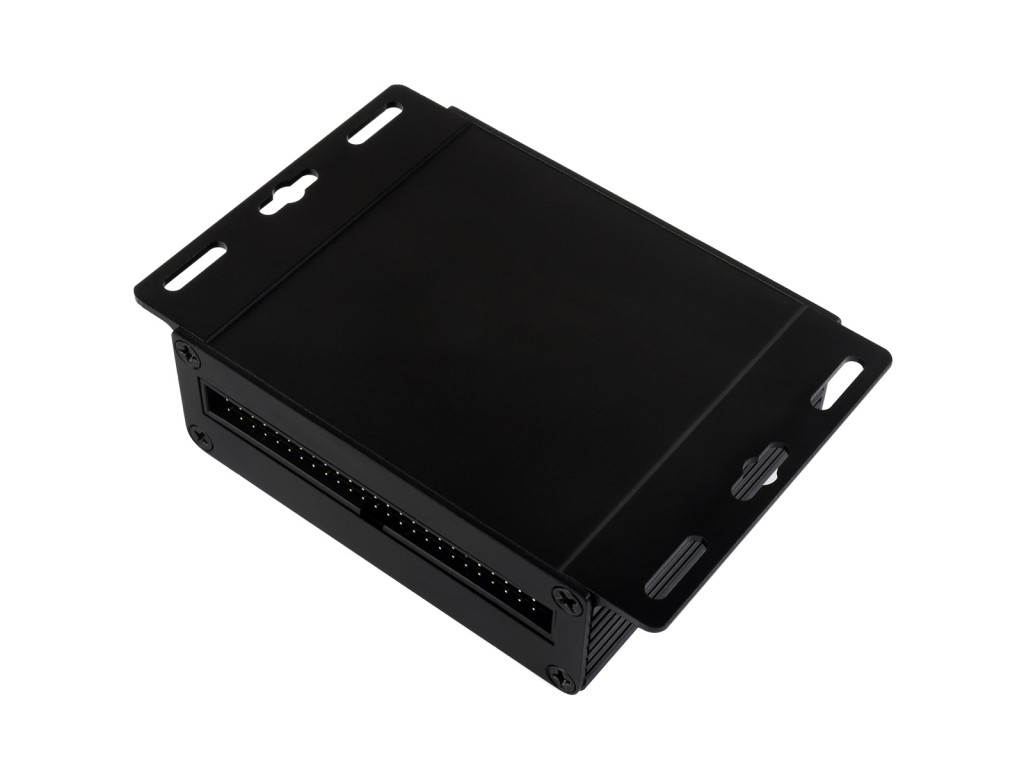

Reversed mounting holes Easy wall mount, industrial alloy enclosure, solid and durable

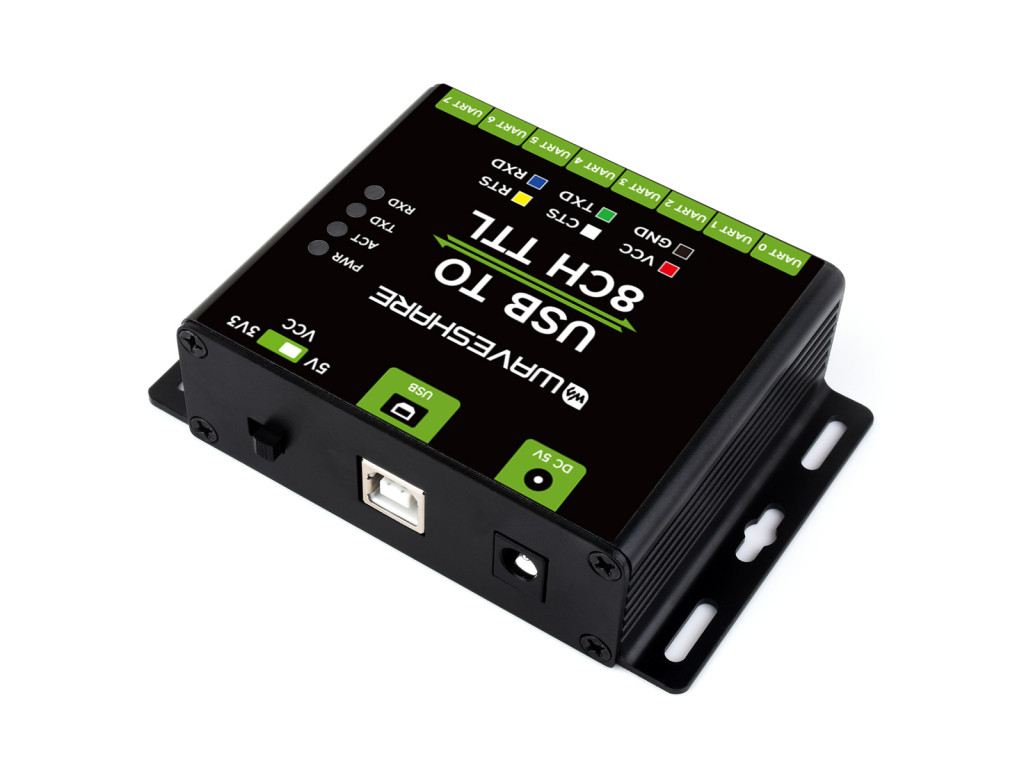

Interface introduction
Indicators description
PWR Power indicator, lights up red when there is USB connection and voltage is detected ACT Status indicator, lights up green when the driver is detected TXD TX indicator, lights up when the USB port sends data RXD RX indicator, lights up when the device ports send data back Pinout definition
VCC 5V or 3.3V output, configured by switch GND Ground TXD Connecting to MCU.RXD RXD Connecting to MCU.TXD RTS Connecting to MCU.CTS CTS Connecting to MCU.RTS Outline dimensions
USB to serial port Converter SelectionModel Description serial port converter
USB TO RS232/485/TTLUSB to single-channel serial port;Adopts FT232RL solution;Industrial grade, with isolation; Wall-mount and desktop support Single serial port converter: - USB to RS232
- USB to RS485
- USB to TTL
USB TO RS232/485/TTL (B)USB to single-channel serial port;Adopts CH343G solution;Industrial grade, with isolation;Wall-mount and desktop support Single serial port converter: - USB to RS232
- USB to RS485
- USB to TTL
USB TO RS232/485/422/TTLUSB to single-channel serial port;Adopts FT232RNL solution;Industrial grade, with isolation;Wall-mount and rail-mount support Single serial port converter: - USB to RS232
- USB to RS485
- USB to RS422
- USB to TTL
USB TO UART/I2C/SPI/JTAGUSB to 2-ch serial port;Adopts CH347T solution;Industrial grade, without isolation;Wall-mount and desktop support Multi-functional serial port converter: - USB to 2-ch TTL
- USB to 1-ch TTL + 1-ch I2C + 1-ch SPI
- USB to 1-ch TTL + 1-ch JTAG
USB TO 4CH TTLUSB to 4-ch serial port;Adopts CH344 solution;Industrial grade, without isolation;Wall-mount and desktop support 4-ch serial port converter: - USB to 4-ch TTL
USB TO 4CH RS485USB to 4-ch serial port;Adopts CH344 solution;Industrial grade, without isolation;Wall-mount and desktop support 4-ch serial port converter: - USB to 4-ch RS485
USB TO 4CH RS485 (B)USB to 4-ch serial port;Adopts CH344 solution;Industrial grade, with isolation;Wall-mount and desktop support 4-ch serial port converter: - USB to 4-ch RS485
USB TO 4CH RS232/485USB to 4-ch serial port;Adopts FT4232HL solution;Industrial grade, with isolation;Wall-mount and rail-mount support 4-ch serial port converter: - USB to 4-ch RS232
- USB to 3-ch RS232 + 1-ch RS485
- USB to 2-ch RS232 + 2-ch RS485
USB TO 4CH RS232USB to 4-ch serial port;Adopts FT4232HL solution;Industrial grade, with isolation;Wall-mount and desktop support 4-ch serial port converter: - USB to 4-ch RS232
USB TO 4CH RS485/422USB to 4-ch serial port;Adopts FT4232HL solution;Industrial grade, with isolation;Wall-mount and rail-mount support 4-ch serial port converter: - USB to 4-ch RS485
- USB to 3-ch RS485 + 1-ch RS422
- USB to 2-ch RS485 + 2-ch RS422
USB TO 4CH Serial ConverterUSB to 4-ch serial port;Adopts FT4232HL solution;Industrial grade, with isolation;Wall-mount and desktop support 4-ch serial port converter: - USB to 1-ch TTL + 3-ch RS485
- USB to 1-ch TTL + 2-ch RS485 + 1-ch RS232
- USB to 1-ch TTL + 2-ch RS485 + 1-ch RS422
- USB to 1-ch TTL + 2-ch RS485 + 1-ch RS232 + 1-ch RS422
- USB to 2-ch TTL + 2-ch RS485
- USB to 2-ch TTL + 1-ch RS485 + 1-ch RS422
- USB to 2-ch TTL + 1-ch RS422 + 1-ch RS232
USB TO 8CH RS485USB to 8-ch serial port;Industrial grade, with isolation;Wall-mount and rail-mount support 8-ch serial port converter: - USB to 8-ch RS485
-
Brand WavesharePartNumber USB TO 8CH TTLRaktárkészlet VANCikkszám RPI-WS27076
-
- USB TO 8CH TTL x1
- USB cable (~1.2m) x1
- 50PIN squid wire x1
