Termék részletek

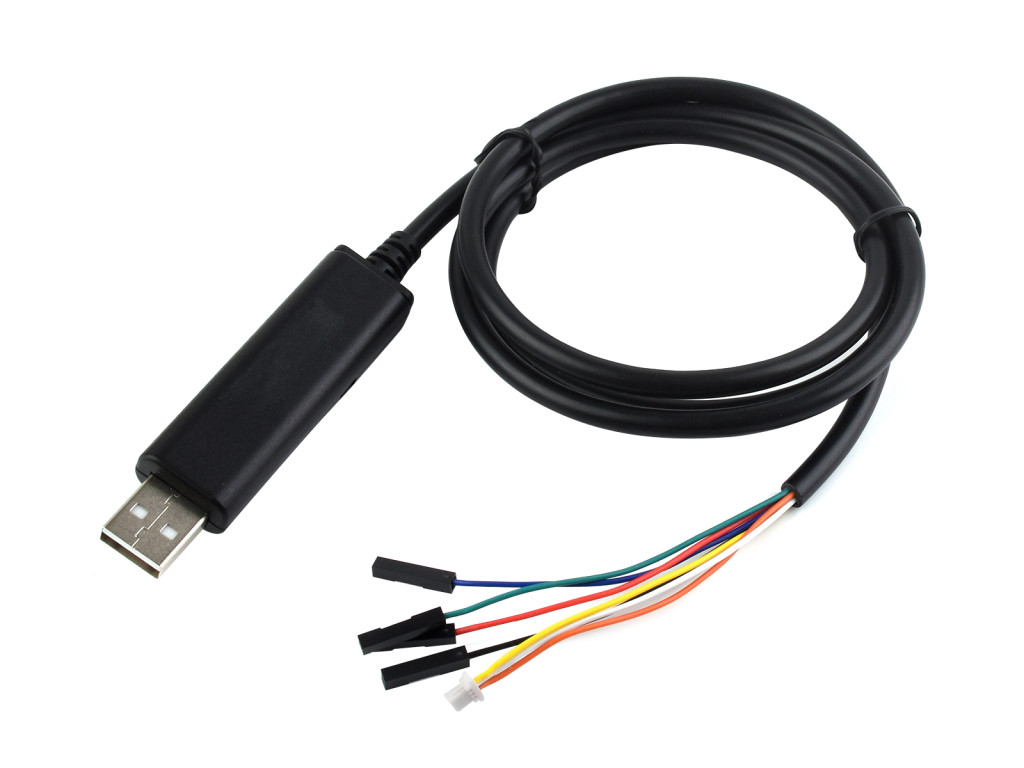

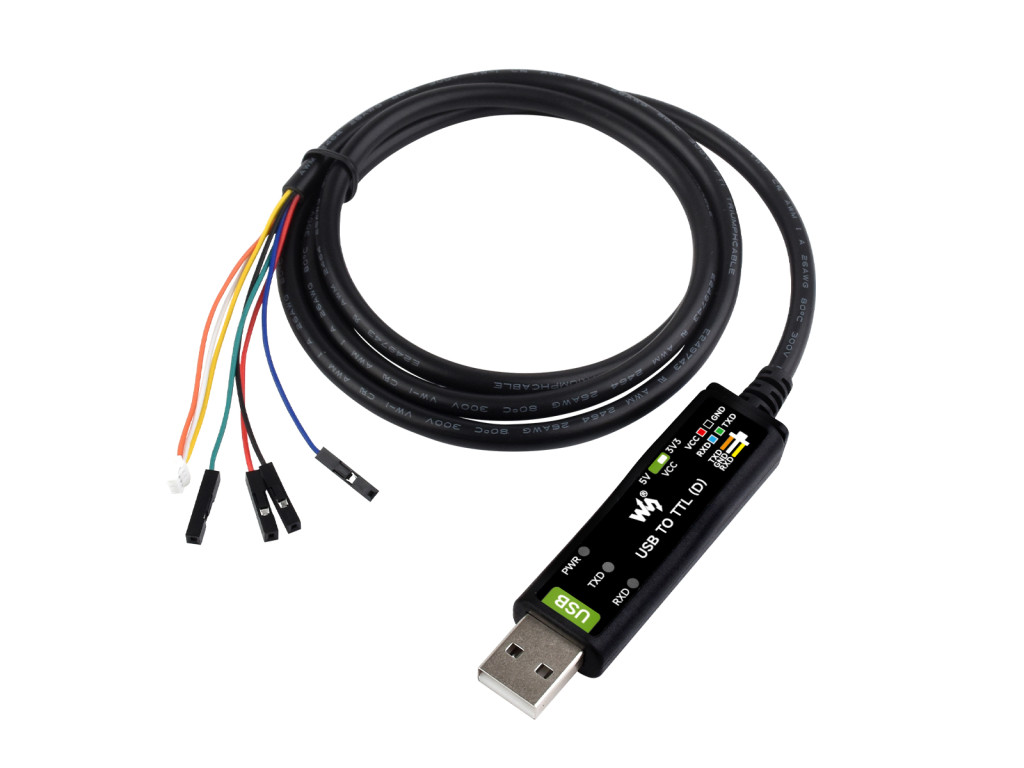

Ipari USB - TTL (D) soros kábel, eredeti FT232RNL chip, több védelmi áramkör, több rendszer támogatása, Raspberry Pi 5 soros DEBUG port hibakereséséhez alkalmas
Ipari USB - TTL (D) soros kábel, eredeti FT232RNL chip, több védelmi áramkör, több rendszer támogatása, elkülönített 4 tűs fejléccel + SH1.0 3 tűs csatlakozóval, Raspberry Pi 5 soros port hibakereséséhez alkalmas
-
Industrial USB TO TTL (D) Serial Cable, Original FT232RNL Chip, Multi Protection Circuits, Multi Systems Support, With Separated 4pin Header + SH1.0 3PIN Connector, Suitable For Raspberry Pi 5 Serial Port DebuggingIndustrial USB to TTL serial cable Type D
Original FT232RNL | Stable Transmission | Multi Devices | Multi Systems
Suitable for serial port debugging of industrial equipments, supports Raspberry Pi 5
Industrial USB TO TTL serial cable, adopts original FT232RNL chip, onboard power supply and signal indicators, supports 3.3V/5V voltage level switching, built in self-recovery fuse, ESD and IO protection diode circuits, etc. It is compact in size, suitable for serial port debugging of industrial equipments and can be directly connected to the Raspberry Pi 5.
SpecificationsProduct category Industrial USB TO TTL serial cable Chip scheme FTDI original FT232RNL Host port USB Data rate 300bps ~ 3Mbps Device Port UART USB port Connector: USB-A Protection: self-recovery fuse, ESD protection UART port Connector: separated 4pin female header + SH1.0 3PIN fool-proof connector Protection: IO protection diode Indicator PWR: power indicator, turns on when there is USB connection and voltage is detected TXD: TX indicator, turns on while the USB port is sending data RXD: RX indicator, turns on while the device port is sending data back Cable Black, PVC sheath, total length 1m Onboard Original ChipsAdopts Original FT232RNL Chips, Providing Better Stability And Compatibility
Raspberry Pi UART debuggingSuitable for Raspberry Pi, supports multiple Connection Methods

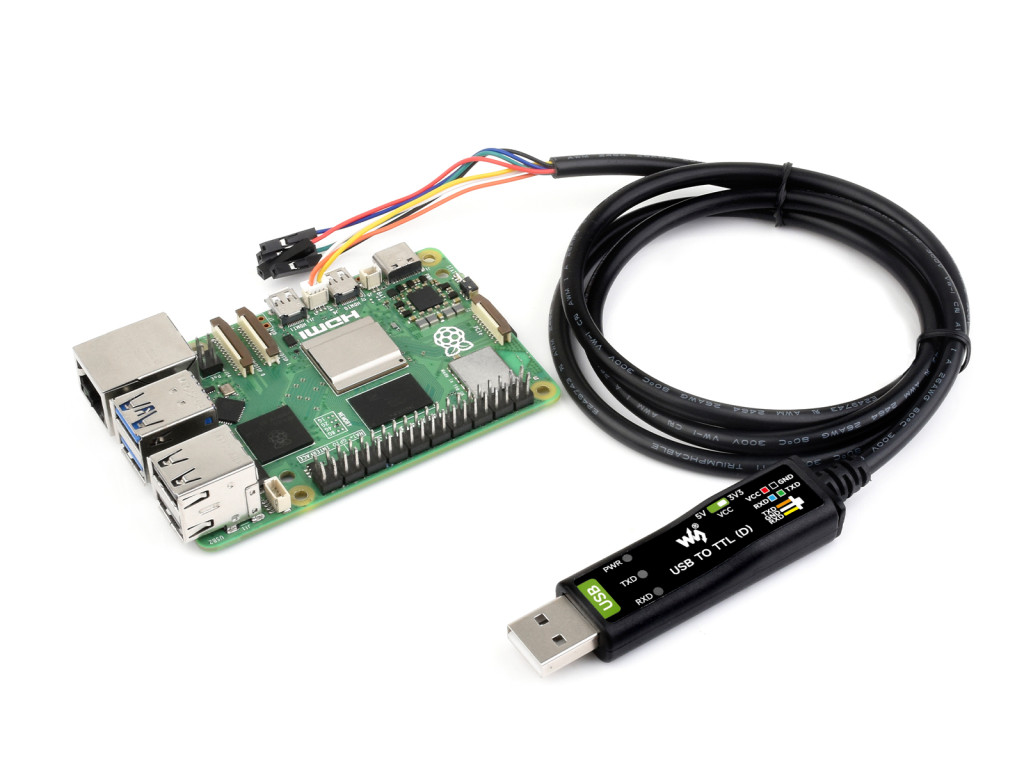

Connect to PI5 UART Debug Connector Via SH1.0 3PIN cable
Connect To Raspberry Pi 40PIN GPIO UART Interface Via Separated 4PIN Header
for reference only, the Raspberry Pi 5 is not included.
Multiple systems supportCompatible with popular systems like Win7/8/8.1/10/11, Mac, Linux, Android...

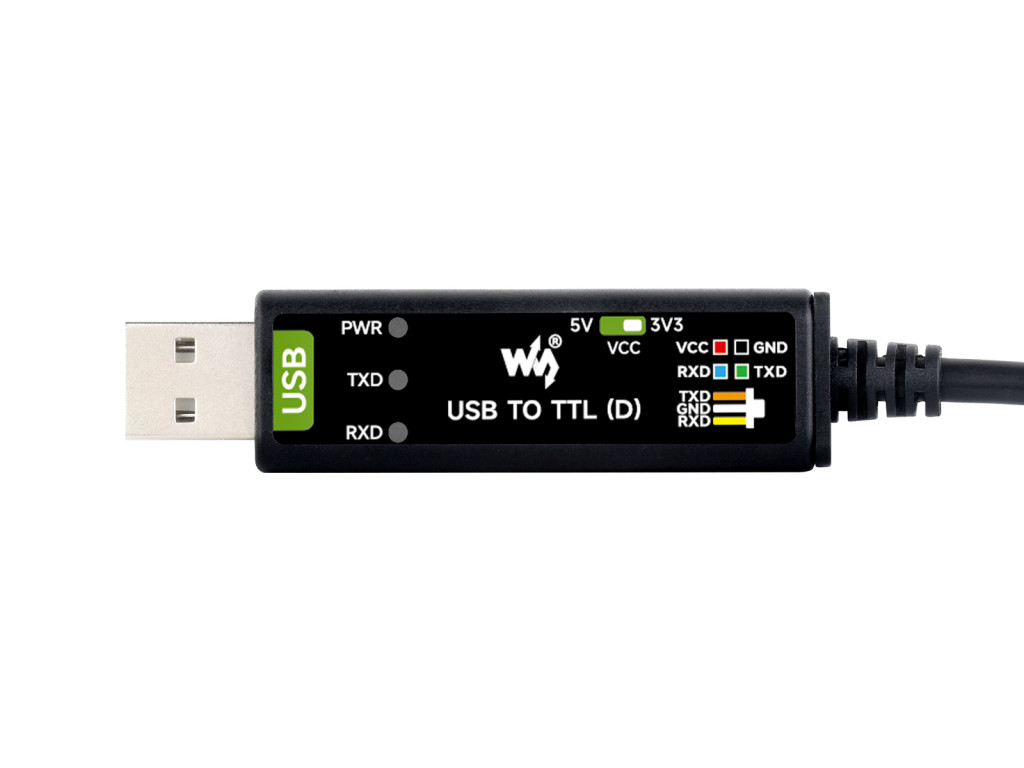

Three LED IndicatorsEasily checking the operating status, convenient for programming / debugging
Pinouts Definition
VCC 3.3V or 5V output, configured by switch GND Ground TXD Connecting to MCU.RXD (signal direction: MCU.RX < < FT232 < < PC.TX) RXD Connecting to MCU.TXD (signal direction: MCU.TX > > FT232 > > PC.RX) Outline dimensions
* The above dimensions are measured manually and may have some errors
Selection guidePartnumber USB TO TTL USB TO TTL (B) USB TO TTL (C) USB TO TTL (D)
PRODUCT CATEGORY Industrial USB TO TTL converter Industrial USB TO TTL serial cable Chip FT232 CH343G FT232 Data rate 300bps ~ 3Mbps 50bps ~ 6Mbps 300bps ~ 3Mbps Hardware flow Supported Not supported OS support Win7/8/8.1/10/11, Mac, Linux, Android USB port Connector: USB-A Protection: resettable fuse, ESD protection UART port Connector: 8PIN fool-proof header Protection: IO protection diode Connector: separated 6pin female header Protection: IO protection diode Connector: separated 4pin female header + SH1.0 3PIN fool-proof connector Protection: IO protection diode Indicators PWR: power indicator, turns on when there is USB connection and voltage is detected TXD: TX indicator, turns on while the USB port is sending data RXD: RX indicator, turns on while the device port is sending data back
-
Brand WavesharePartNumber USB TO TTL (D)Raktárkészlet VANCikkszám RPI-WS26738
-
USB TO TTL (D) x1
