Raspberry PI Zero W - USB Development Kit

Raktárkészlet: NINCS
Raspberry PI Zero W - USB Development Kit
  • Raspberry PI Zero W - USB Development Kit
  • Raspberry PI Zero W - USB Development Kit
  • Raspberry PI Zero W - USB Development Kit
  • Raspberry PI Zero W - USB Development Kit
14 953 Ft + 27% ÁFA | Bruttó:18 990 Ft
Nincs raktáron
Értesítést kérek, ha újra lesz raktáron

Raspberry PI Zero W - USB Development Kit

Raspberry Pi Zero W (built-in WiFi) Development Kit Micro SD Card, tápegységgel, USB HUB, és alap tartozékokkal

  • Raspberry PI Zero W - USB Development Kit leírás

    Raspberry Pi Zero W (built-in WiFi) fejlesztői csomag, amiben minden tartozék megtalálható a működéshez. A csomag különlegessége az az USB-HAT modul, aminek segítségével négy USB eszközt is csatlakoztathatsz a miniatűr Raspberry PI Zero W számítógéphez. A készlet pár perc alatt beüzemelhető.

    Raspberry Pi Zero W jellemzői:



    • Broadcom BCM2835
      • 1GHz ARM11 single-core processor
    • 512MB RAM
    • Added wireless connectivity
      • 802.11 b/g/n wireless LAN
      • Bluetooth 4.1
      • Bluetooth Low Energy (BLE)
    • Micro SD card slot
    • Mini-HDMI port (1080p60 video output)
    • Micro-USB power
    • Micro-USB OTG port
    • 40PIN unpopulated GPIO header (compatible with A+/B+/2B/3B)
    • CSI camera connector
    • Composite video header
    • Composite reset header
    • Dimension: 65mm x 30mm x 5mm

    USB HUB HAT tulajdonságai

    • 4 USB Ports,  USB2.0/1.1 kompatibilis
    • alaplapi USB to UART, a Raspberry Pi serial debugging részére
    • alaplapi indikátor LED-ek a táp és az USB portok monitorozásához



    Raspberry PI Zero W - USB HAT

    1. Raspberry Pi GPIO interface: for connecting Raspberry Pi
    2. USB to UART: for controlling the Raspberry Pi via serial terminal
    3. USB HUB interface (bottom): for connecting the HUB to the Raspberry Pi USB port
      • Raspberry Pi Zero / Zero W: connected via Micro USB connector
      • Raspberry Pi B+ / 2B / 3B: connected via Micro USB cable
    4. USB extended ports: USB1~USB4
    5. USB port indicators: dedicated indicator for each USB port, D1~D4 for USB1~USB4 respectively
    6. Power indicator
    7. USB to UART indicator
    8. FE1.1S: USB HUB chip
    9. 12MHz crystal
    10. CP2102: USB to UART converter

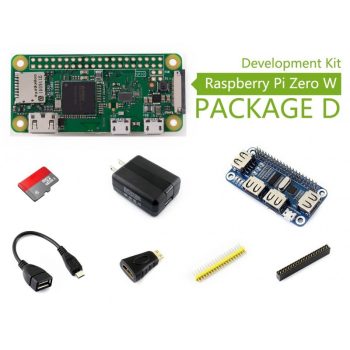

    Raspberry PI Zero W - USB Development Kit tartalma

    Raspberry PI Zero W - USB Development Kit

    Az alábbi tartozékok kerültek a csomagba:

    1. Raspberry Pi Zero W x1
    2. Mini HDMI to HDMI Adapter x1
    3. Micro USB OTG kábel x1
    4. 2x20-pin 2.54 male pinheader strip x1
    5. 2x20-pin 2.54 female pinheader strip x1
    6. Micro SD Card 16GB x1
    7. Tápegység 5V/3A
    8. USB type A plug to micro B plug cable x1
    9. USB HUB HAT x1
    10. Micro USB connector x1
    11. RPi screws pack (2pcs) x1



    Tömeg: 0.192 kg

  • Raktárkészlet
    NINCS
    Cikkszám
    RPI-WS13737
;
