Luckfox PicoKVM Lightweight IP KVM Remote Management Tool, Supports 1920 × 1080@60fps HDMI Video Input And HID Signal Output For Device Control - Full version with 8GB eMMC (with metal case and 1.54inch touch display)

ÚJ
Raktárkészlet: VAN
Luckfox PicoKVM Lightweight IP KVM Remote Management Tool, Supports 1920 × 1080@60fps HDMI Video Input And HID Signal Output For Device Control - Full version with 8GB eMMC (with metal case and 1.54inch touch display)
  • Luckfox PicoKVM Lightweight IP KVM Remote Management Tool, Supports 1920 × 1080@60fps HDMI Video Input And HID Signal Output For Device Control - Full version with 8GB eMMC (with metal case and 1.54inch touch display)
  • Luckfox PicoKVM Lightweight IP KVM Remote Management Tool, Supports 1920 × 1080@60fps HDMI Video Input And HID Signal Output For Device Control - Full version with 8GB eMMC (with metal case and 1.54inch touch display)
  • Luckfox PicoKVM Lightweight IP KVM Remote Management Tool, Supports 1920 × 1080@60fps HDMI Video Input And HID Signal Output For Device Control - Full version with 8GB eMMC (with metal case and 1.54inch touch display)
  • Luckfox PicoKVM Lightweight IP KVM Remote Management Tool, Supports 1920 × 1080@60fps HDMI Video Input And HID Signal Output For Device Control - Full version with 8GB eMMC (with metal case and 1.54inch touch display)
  • Luckfox PicoKVM Lightweight IP KVM Remote Management Tool, Supports 1920 × 1080@60fps HDMI Video Input And HID Signal Output For Device Control - Full version with 8GB eMMC (with metal case and 1.54inch touch display)
  • Luckfox PicoKVM Lightweight IP KVM Remote Management Tool, Supports 1920 × 1080@60fps HDMI Video Input And HID Signal Output For Device Control - Full version with 8GB eMMC (with metal case and 1.54inch touch display)
34 785 Ft + ÁFA | Bruttó:44 177 Ft
db Kosárba Kosárba
Árváltozás értesítő
Luckfox PicoKVM Lightweight IP KVM Remote Management Tool, Supports 1920 × 1080@60fps HDMI Video Input and HID Signal Output for Device Control
Részletek Kiegészítő termékek Hasonló termékek Adatok Csomag tartalma
  • Luckfox PicoKVM Lightweight IP KVM Remote Management Tool, Supports 1920 × 1080@60fps HDMI Video Input and HID Signal Output for Device Control
    Luckfox PicoKVM

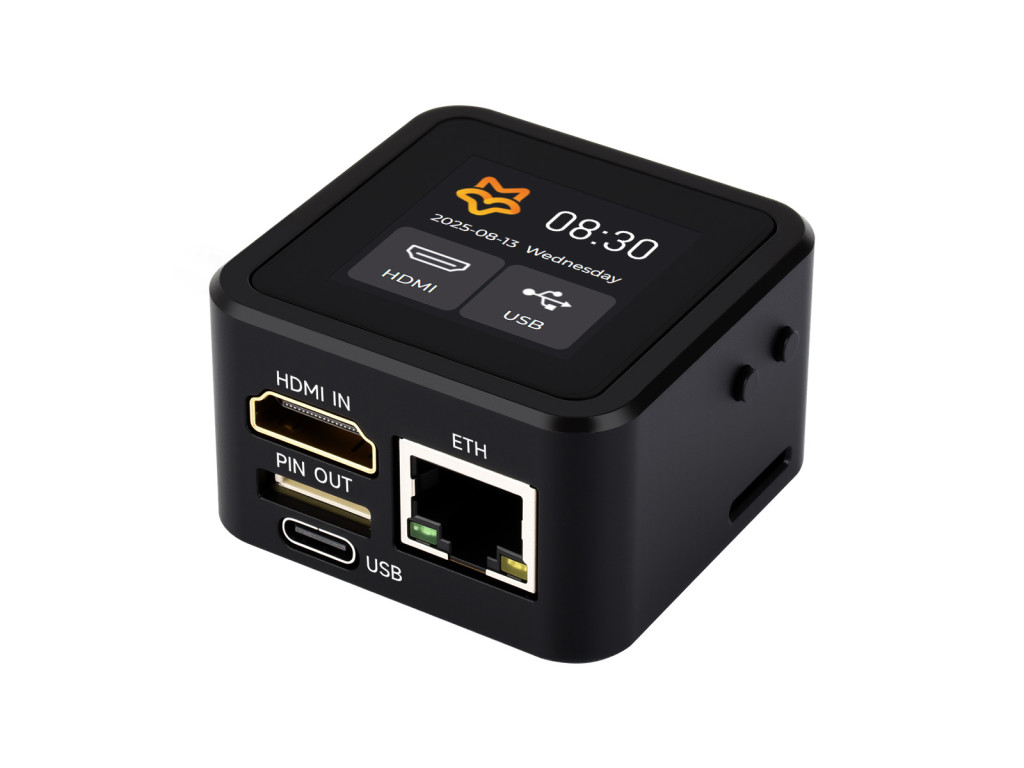

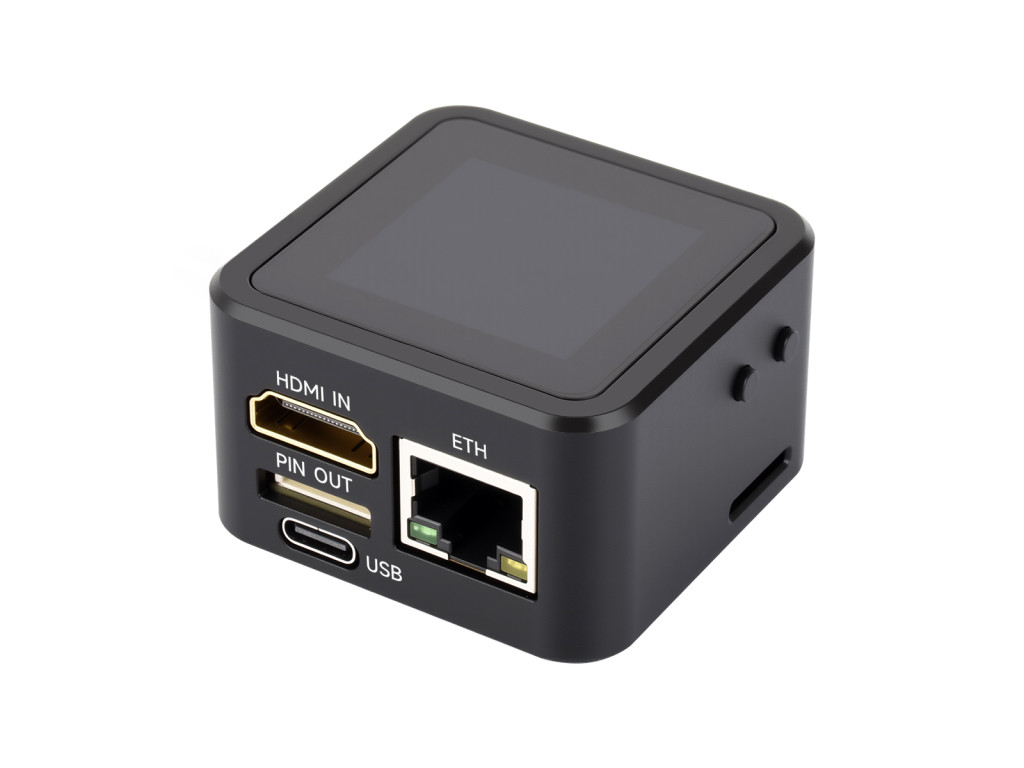

    Luckfox PicoKVM, front viewLuckfox PicoKVM, features
    Version options

    Note: The Lite versions require a TF card (please purchase separately) for proper operation.

    Luckfox PicoKVM, Luckfox PicoKVM Base Lite

    Luckfox PicoKVM Base Lite Basic version without eMMC

    Luckfox PicoKVM, Luckfox PicoKVM Base

    Luckfox PicoKVM Base Basic version with 8GB eMMC

    Luckfox PicoKVM, Full version (with metal case and 1.54inch touch display)

    Luckfox PicoKVM Lite Full version without eMMC (with metal case and 1.54inch touch display)

    Luckfox PicoKVM, Full version (with metal case and 1.54inch touch display)

    Luckfox PicoKVM Full version with 8GB eMMC (with metal case and 1.54inch touch display)

    Luckfox PicoKVM, Full version (with metal case and 1.54inch touch display)

    Luckfox PicoKVM Lite Kit Luckfox PicoKVM Lite Full version (with metal case and 1.54inch touch display, without eMMC) + Luckfox PicoKVM Ext Power Management Expansion Board

    Luckfox PicoKVM, Full version (with metal case and 1.54inch touch display)

    Luckfox PicoKVM Kit Luckfox PicoKVM Full version (with 8GB eMMC, metal case, and 1.54inch touch display) + Luckfox PicoKVM Ext Power Management Expansion Board

    Features

    The Luckfox PicoKVM is a lightweight IP KVM management tool, supports real-time video capture and HID input simulation over the network, enabling touch-free operation of development boards, PCs, and servers. This product offers stable, low-latency video capture and remote control capabilities, widely suitable for scenarios such as remote PC control and server maintenance.

    Key Features:

    • OnboardHDMI input interface: recognized by PC as a display for video capture
    • OnboardUSB port: Supports simulation of mouse, keyboard, and USB storage devices
    • Onboard100Mbps Ethernet port: for video and control signal transmission
    • 1.54inch touch display: for displaying IP address, connection status, and system operating status
    • TF card slot: supports storage expansion
    • I/O expansion interface: for host power ON/OFF control
    Specifications
    ProductLuckfox PicoKVMLuckfox PicoKVM Lite
    ProcessorRV1106G3
    Core1 × A7@1.2G
    Memory256M DDR3
    Storage8G eMMCTF card (please purchase separately)
    SystemPicoKVM
    Resolution1080P@60fps
    Video EncodingH.264/AVC, H.265/HEVC
    Video Latency80ms ~ 200ms
    Audio Transmission√
    UEFI / BIOS Support√
    USB Keyboard & Mouse Emulation√
    USB Storage Emulation√
    Wake-on-LAN (WOL)√
    Web Terminal√
    Custom Script√
    TF Card Slot√
    Serial Terminal1-Ch
    Power ControlGPIO control
    Ethernet100Mbps
    LCD Display1.54inch 240 × 240 touch display (Only included in the Luckfox PicoKVM full versions)
    Power InputType-C
    Outline DimensionLuckfox PicoKVM: 48.50 × 48.50 × 29.00 (mm)
    Luckfox PicoKVM Base: 44.00 × 42.00 × 23.60 (mm)
    Comparison with Commercial Remote Control Software
    Luckfox PicoKVM, Comparison with Commercial Remote Control Software
    Remote Power Control

    Enables Physical-Level Remote Power Control with Luckfox PicoKVM Ext Expansion Board

    Luckfox PicoKVM, Comparison with Commercial Remote Control Software

    * for reference only, the above host board is NOT included. Please purchase the Luckfox PicoKVM Ext Expansion Board separately or choose the Luckfox PicoKVM Kit.

    Function Demonstrations
    Luckfox PicoKVM, supports remote control host system, expandable power control, virtual USB drive mounting, wake on LAN (WOL)Luckfox PicoKVM, supports cross-regional Networking
    What's On Board

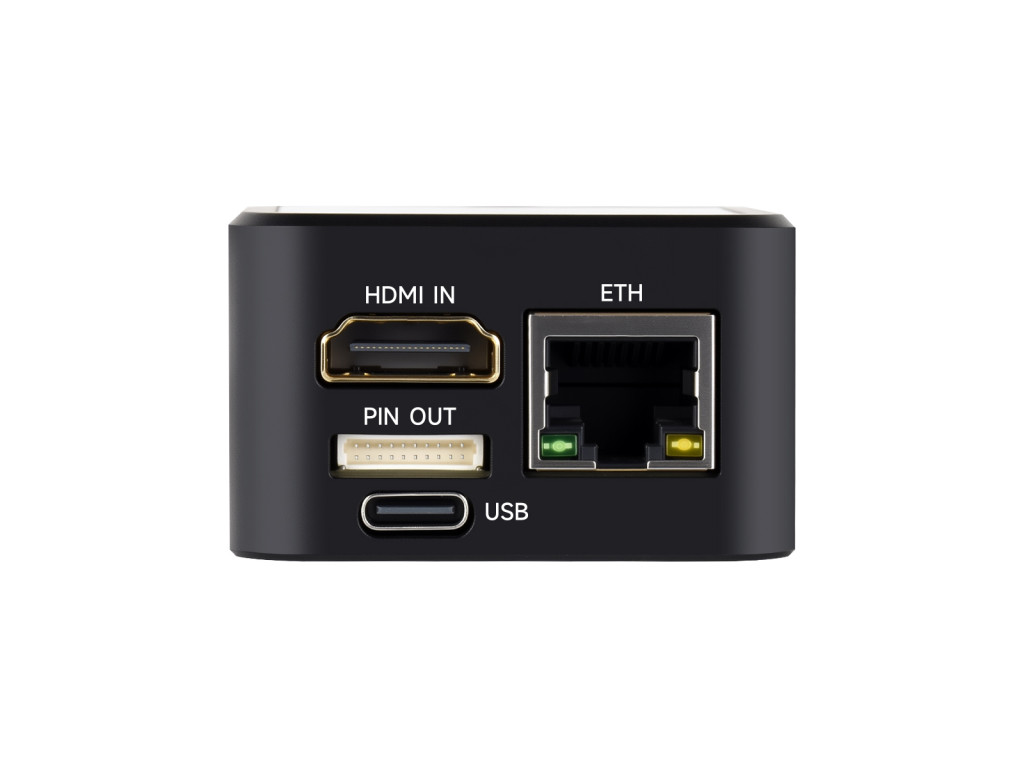

    Luckfox PicoKVM, onboard components
    1. HDMI IN interface for connecting to the HDMI output interface of the controlled host
    2. I/O expansion interface
    3. USB Type-C port for power supply, simulating HID/UMS devices, and programming
    4. 10/100Mbps RJ45 Ethernet port with indicator
    1. 1.54inch touch LCD

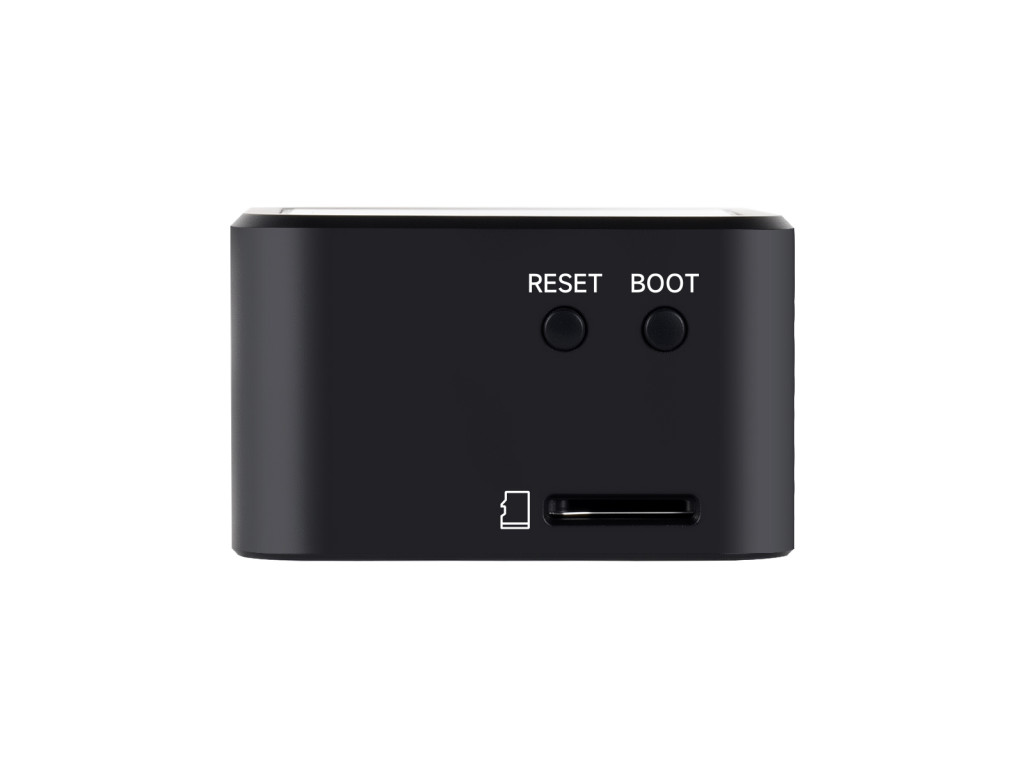

    2. BOOT button press it when powering on or resetting to enter download mode
    3. RESET button
    4. TF card slot
    Pin definition
    Luckfox PicoKVM, pin definition
    outline dimensions

    Luckfox PicoKVM

    Luckfox PicoKVM, Luckfox PicoKVM dimensions

    Luckfox PicoKVM Base

    Luckfox PicoKVM, Luckfox PicoKVM Base dimensions

    Luckfox PicoKVM Ext Expansion Board

    Luckfox PicoKVM, Luckfox PicoKVM Base dimensions
    Certificate of Authorization
  • Brand
    LUCKFOX
    PartNumber
    Luckfox PicoKVM
    Raktárkészlet
    VAN
    Cikkszám
    RPI-WS30583
    Státusz
    ÚJ

  • Luckfox PicoKVM

    1. OPTIONS Luckfox PicoKVM (0GB (Lite) / 8GB) x1
    2. Type-C extension cable with auxiliary power supply ~175mm x1
    1 Luckfox PicoKVM
    2 Luckfox PicoKVM

    Luckfox PicoKVM Base

    OPTIONS Luckfox PicoKVM Base (0GB (Lite) / 8GB) x1

    Luckfox PicoKVM Base

    Luckfox PicoKVM Kit

    1. OPTIONS Luckfox PicoKVM (0GB (Lite) / 8GB) x1
    2. Luckfox PicoKVM Ext x1
    3. Type-C extension cable with auxiliary power supply ~175mm x1
    4. Motherboard USB extension 9PIN cable x1
    5. Motherboard panel extension 9PIN cable x1
    6. SH1.0 10PIN cable ~1m x1
    1 Luckfox PicoKVM
    2 Luckfox PicoKVM Ext
    3 Luckfox PicoKVM
    4 Luckfox PicoKVM Ext
    5 Luckfox PicoKVM Ext
    6 Luckfox PicoKVM Ext
:
;
