    Luckfox PicoKVM Ext

    Works With Luckfox PicoKVM For Remote Power Management

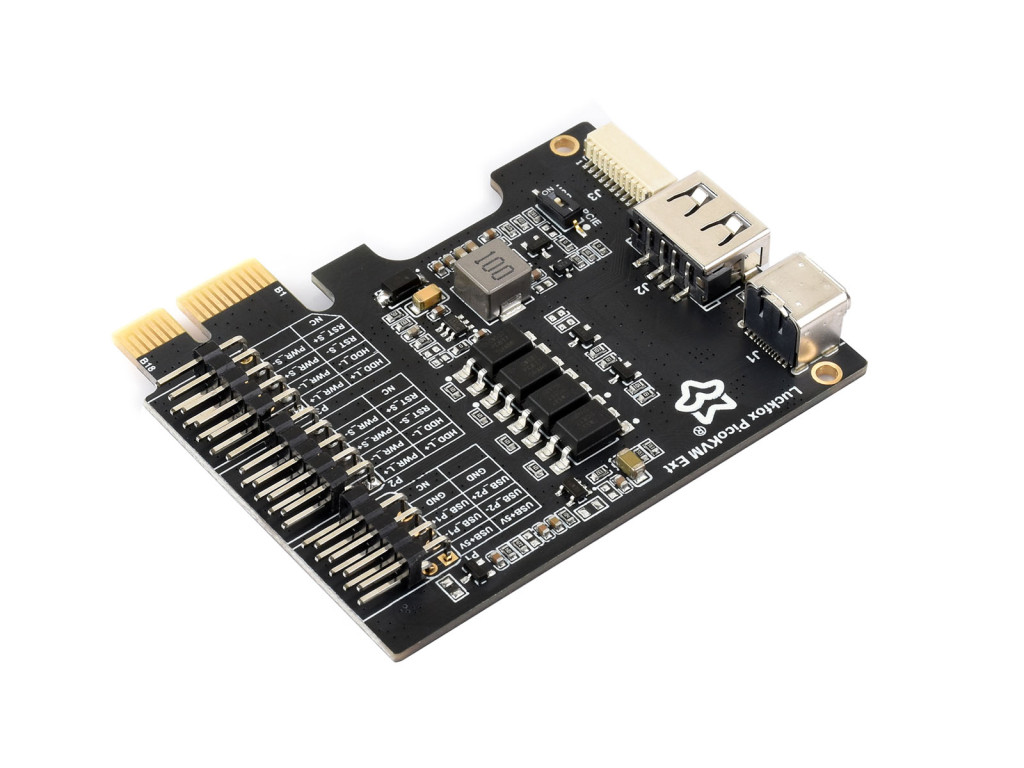

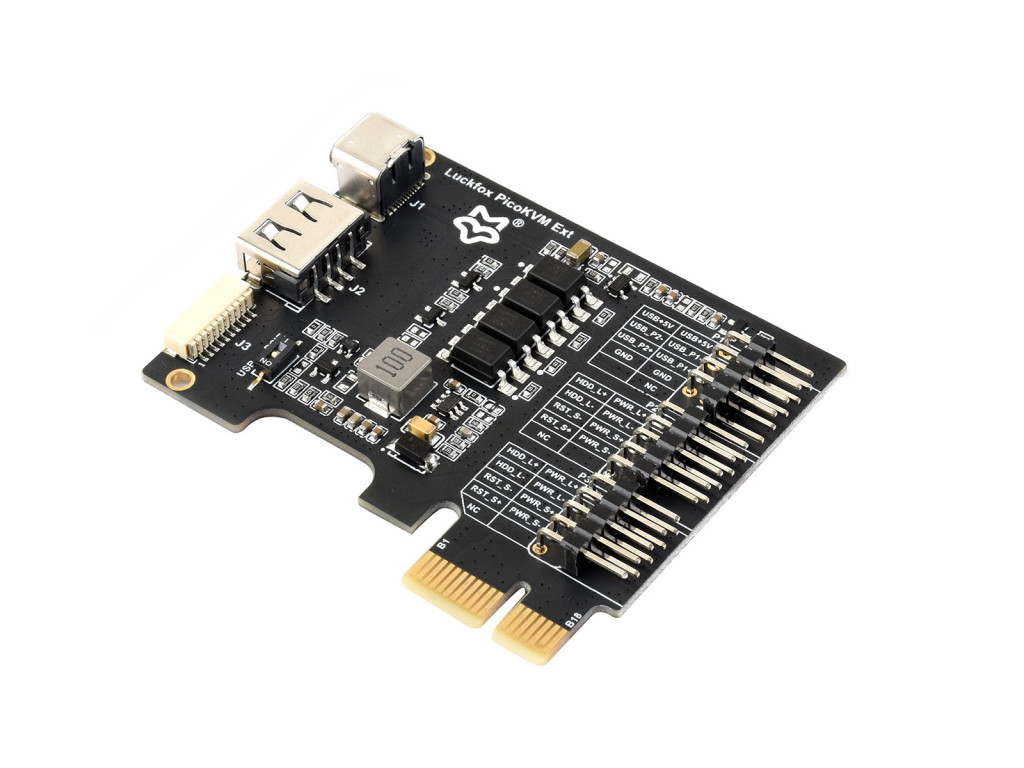

    Luckfox PicoKVM Ext, front viewLuckfox PicoKVM Ext, features
    PCIe Interface Compatible

    Supports motherboards with PCIe ×1 / ×4 / ×8 / ×16 slot

    Luckfox PicoKVM Ext, Comparison with Commercial Remote Control Software

    * Note: the PCIe interface is for 12V power supply only.

    Onboard 2 × Front panel header

    Allows simultaneous connection to the motherboard front panel header and the chassis front panel, enabling shared power control

    Luckfox PicoKVM Ext, 2 × Front-panel headers
    Supports PCIe or USB power supply

    Two Power Supply Modes selectable via onboard Switch

    Luckfox PicoKVM Ext, Supports PCIe & USB power supply
    Adapting motherboard USB ports

    Adapting USB-A & USB-C ports via motherboard USB header, for connecting Luckfox PicoKVM or other USB devices

    Luckfox PicoKVM Ext, Breaking out motherboard USB ports
    Web Control

    Works with Luckfox PicoKVM, remotely control the computer to power on/off, restart, or force shutdown, and retrieve power status

    Luckfox PicoKVM Ext, With Luckfox PicoKVM, remotely control your computer to power on/off, restart, or force shutdown, and retrieve power status
    Installation Example

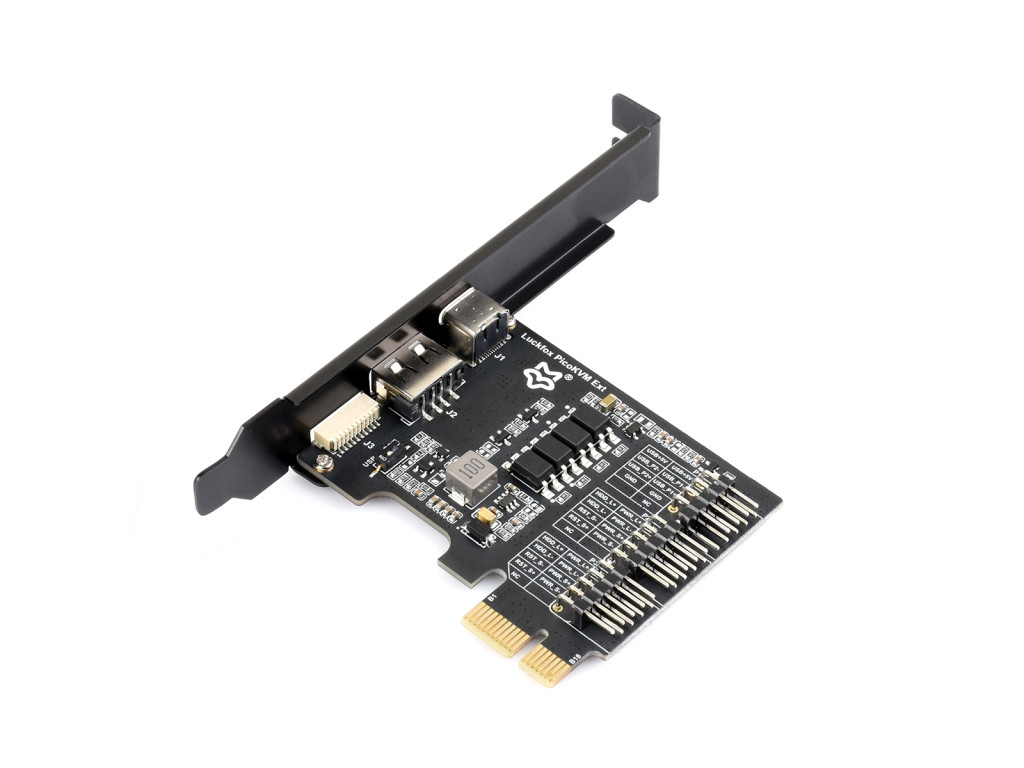

    Includes a full-height metal bracket. Compact design compatible with various chassis types, no external space required

    Luckfox PicoKVM Ext, how to install

    * the Luckfox PicoKVM is NOT included, please refer to the package content for the detailed part list.

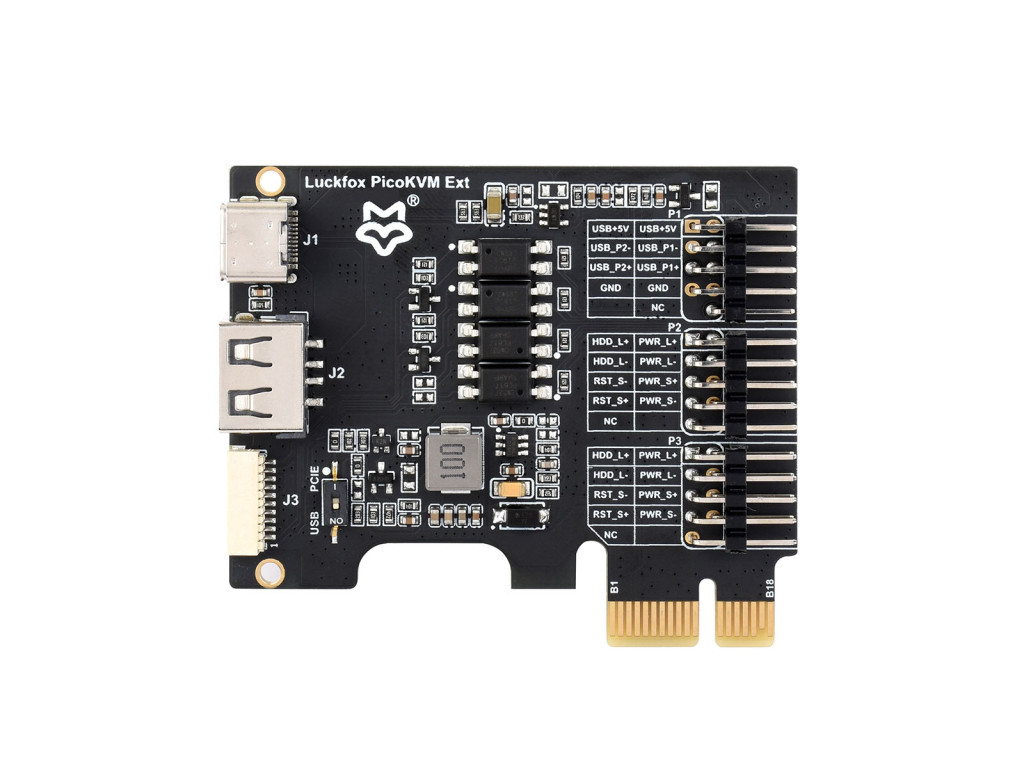

    What's On Board
    Luckfox PicoKVM Ext Whats On Board
    1. USB-C portAdapting from motherboard USB header USB_P1
    2. USB-A portAdapting from motherboard USB header USB_P2
    3. IO control connector
    4. Power supply selection switchUSB or PCIe power supply switchable
    1. PCIe interfacefor 12V power supply only
    2. Motherboard front panel headersconnects to motherboard front panel and chassis front panel
    3. Motherboard USB header
    IO Control Connector Pin Definition
    Luckfox PicoKVM Ext, Breaking out motherboard USB ports
    outline dimensions
    Luckfox PicoKVM Ext, Luckfox PicoKVM Ext dimensions
    Certificate of Authorization
    Luckfox Pico Pi series, certificate
  • Brand
    LUCKFOX
    PartNumber
    Luckfox PicoKVM Ext
    Raktárkészlet
    VAN
    Cikkszám
    RPI-WS33756
    Státusz
    ÚJ
    1. Luckfox PicoKVM Ext (with full-height metal bracket) x1
    2. Motherboard USB extension 9PIN cable x1
    3. Motherboard panel extension 9PIN cable x1
    4. SH1.0 10PIN cable ~1m x1
